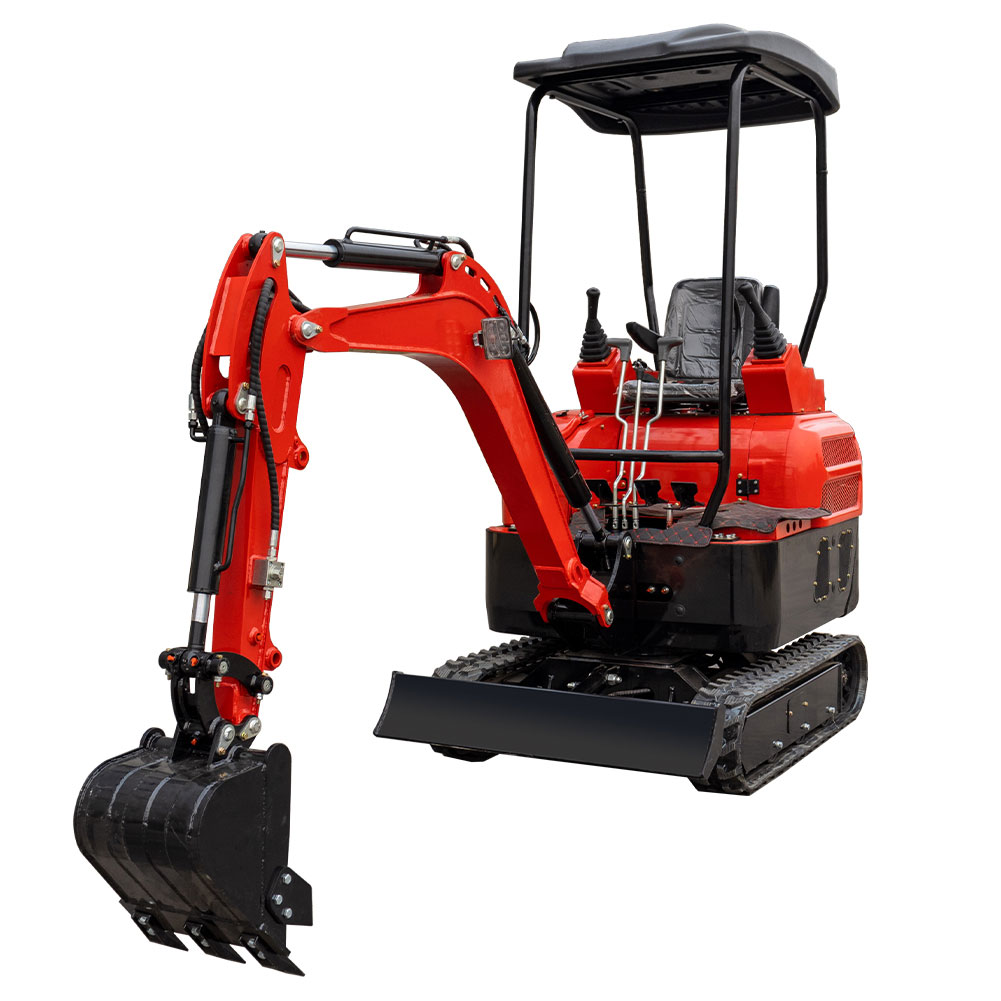

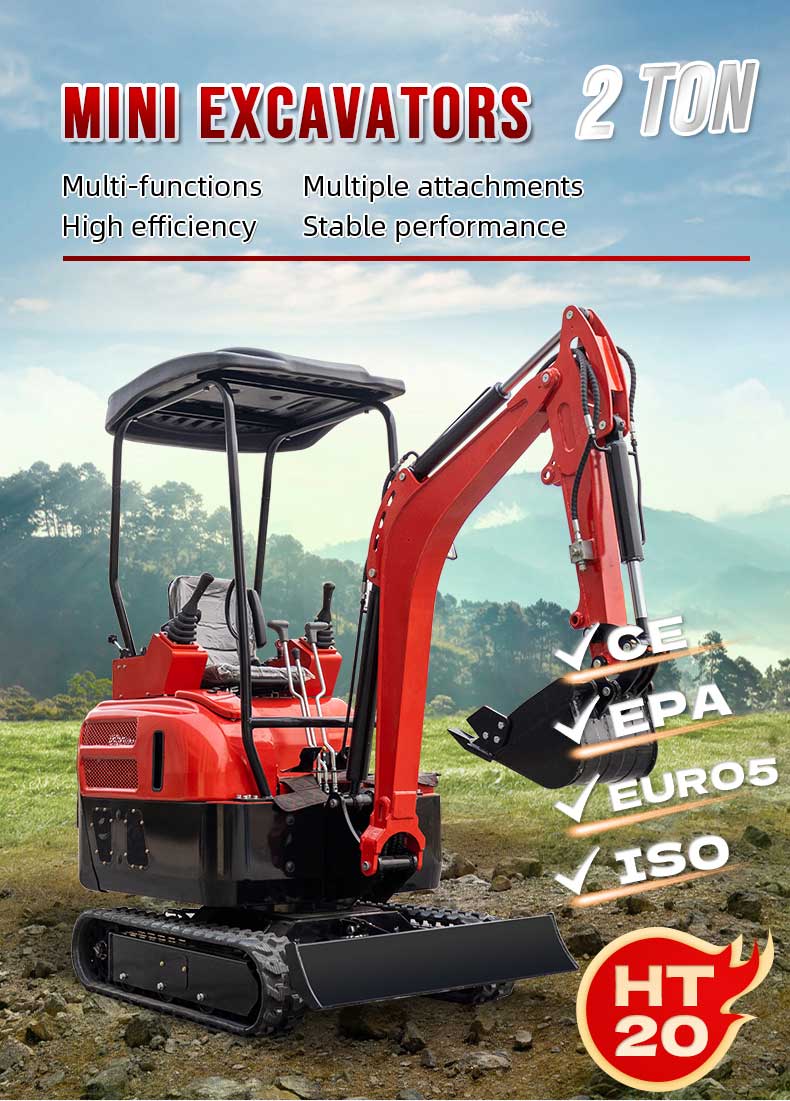

2ton Mini Excavator HT20-1

HT20-1 2ton Mini Excavator Advantages

laidong efficient engine

perfectly matched hydraulics system

multiple attachments available

inverted jib cylinder

hidden oil hose

add drain line

Contact Now E-mail Telephone WhatsApp

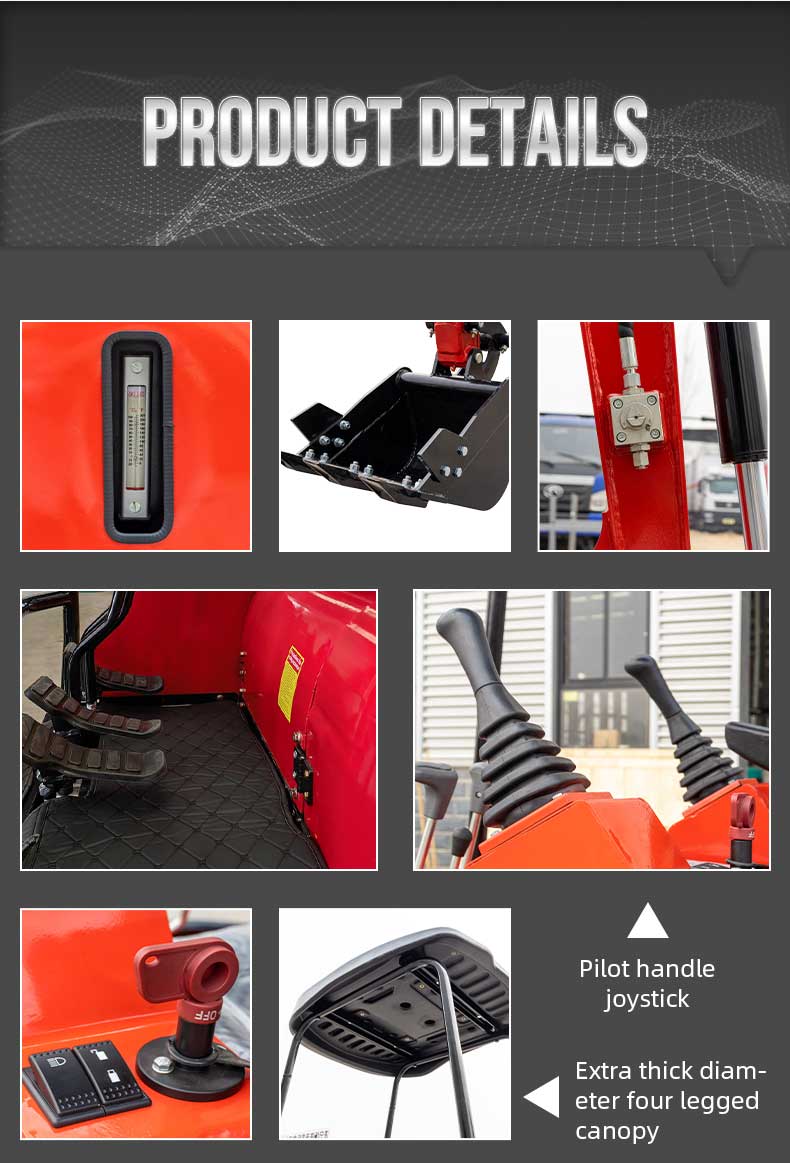

Product Details

HT20-1 2ton Mini Excavator Instruction

LAIDONG EFFICIENT ENGINE

Hightop HT20 2ton mini excavator selected Laidong385 engine, power up to 19KW, strong work and fuel saving, uniform heat distribution.Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.

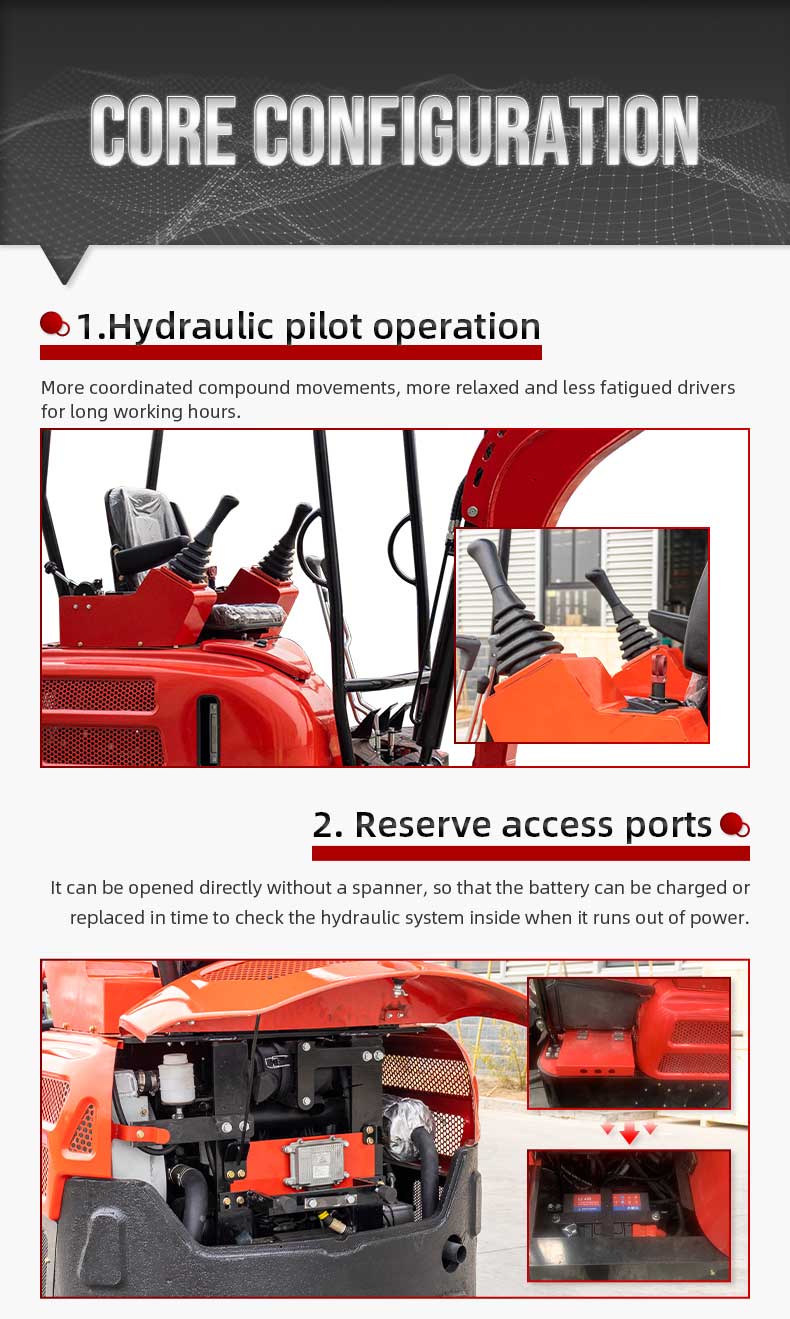

PERFECTLY MATCHED HYDRAULICS SYSTEM

This 2,000kg mini excavator helps you maneuver the machine with ease and simplicity, and the hydraulic hose is in a fixed position to avoid touching it during construction. Optional features: rocker arm, retractable tracks, closed cab.

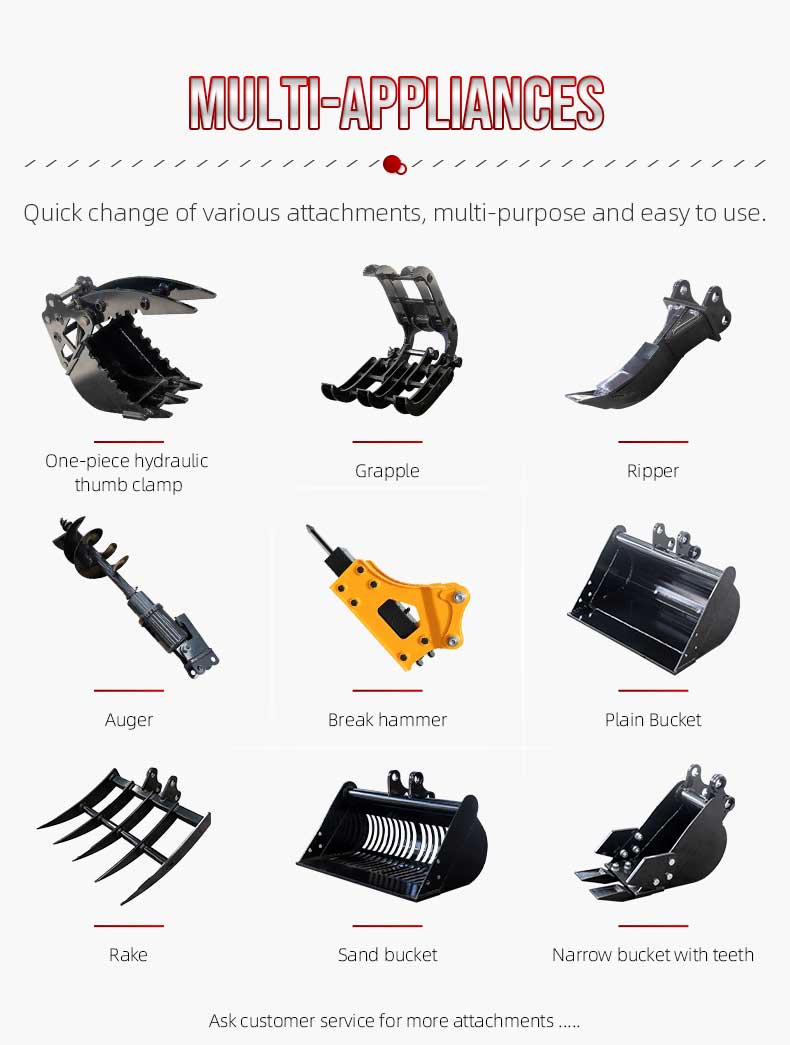

MULTIPLE ATTACHMENTS AVAILABLE

This 2ton mini excavator can be installed with hydraulic quick hitch,narrow bucket,hammer,auger,tilt bucket,ripper,rake,rotary grapple,tree shears and lawn mower.

Let you only need to buy an excavator to do all kinds of work.

INVERTED JIB CYLINDER

Inverted design of the boom cylinder, Greatly increases the digging depth.

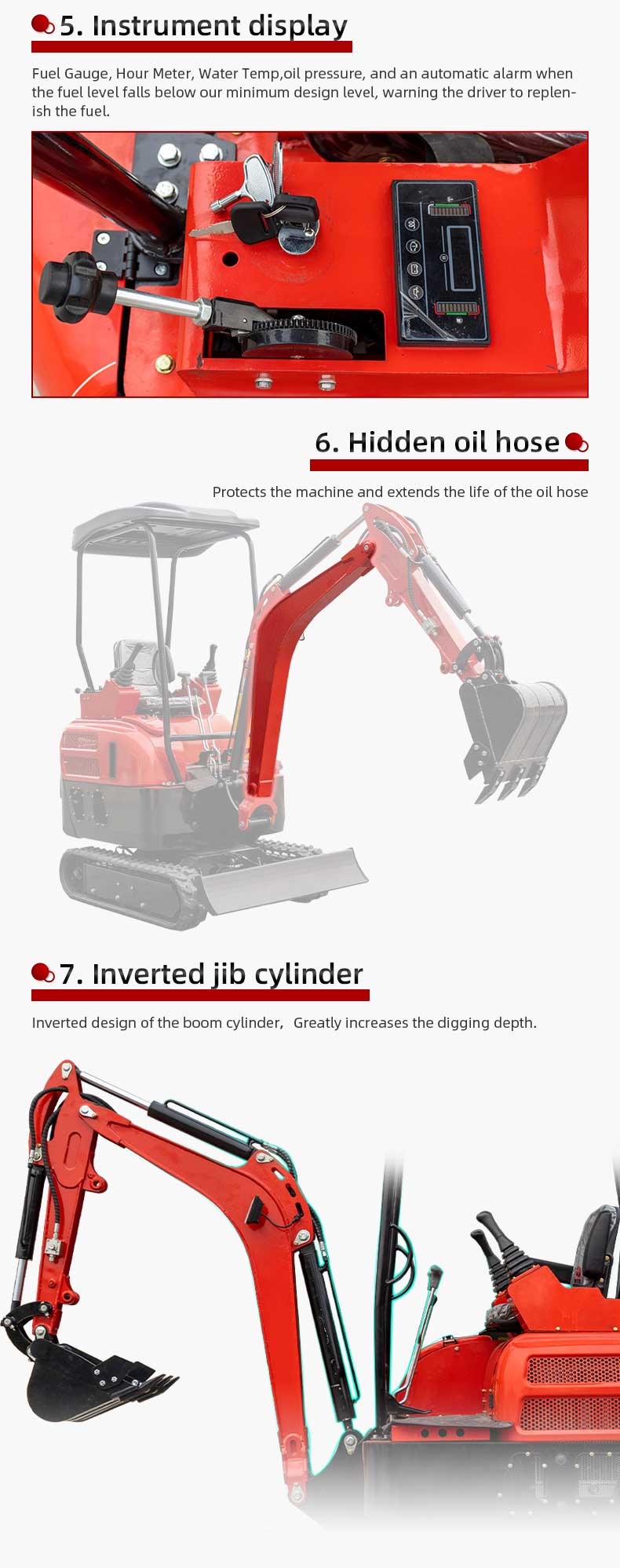

HIDDEN OIL HOSE

Protects the machine and extends the life of the oil hose.

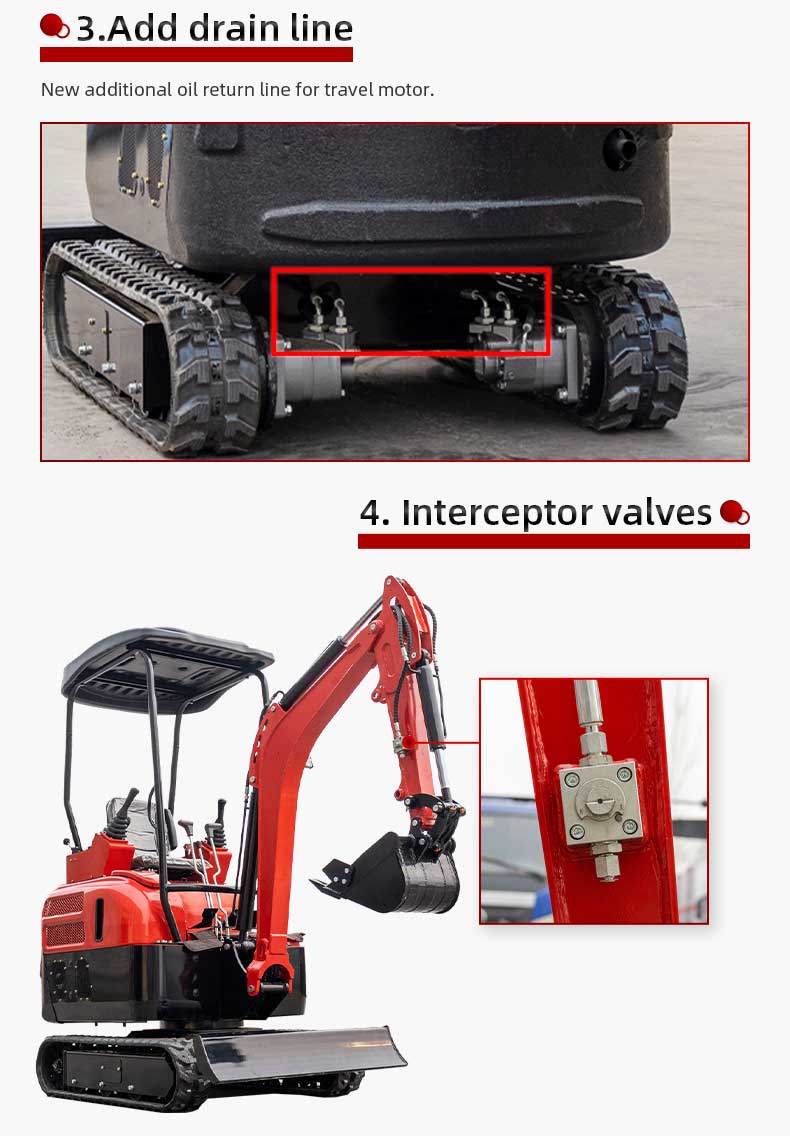

ADD DRAIN LINE

New additional oil return line for travel motor.

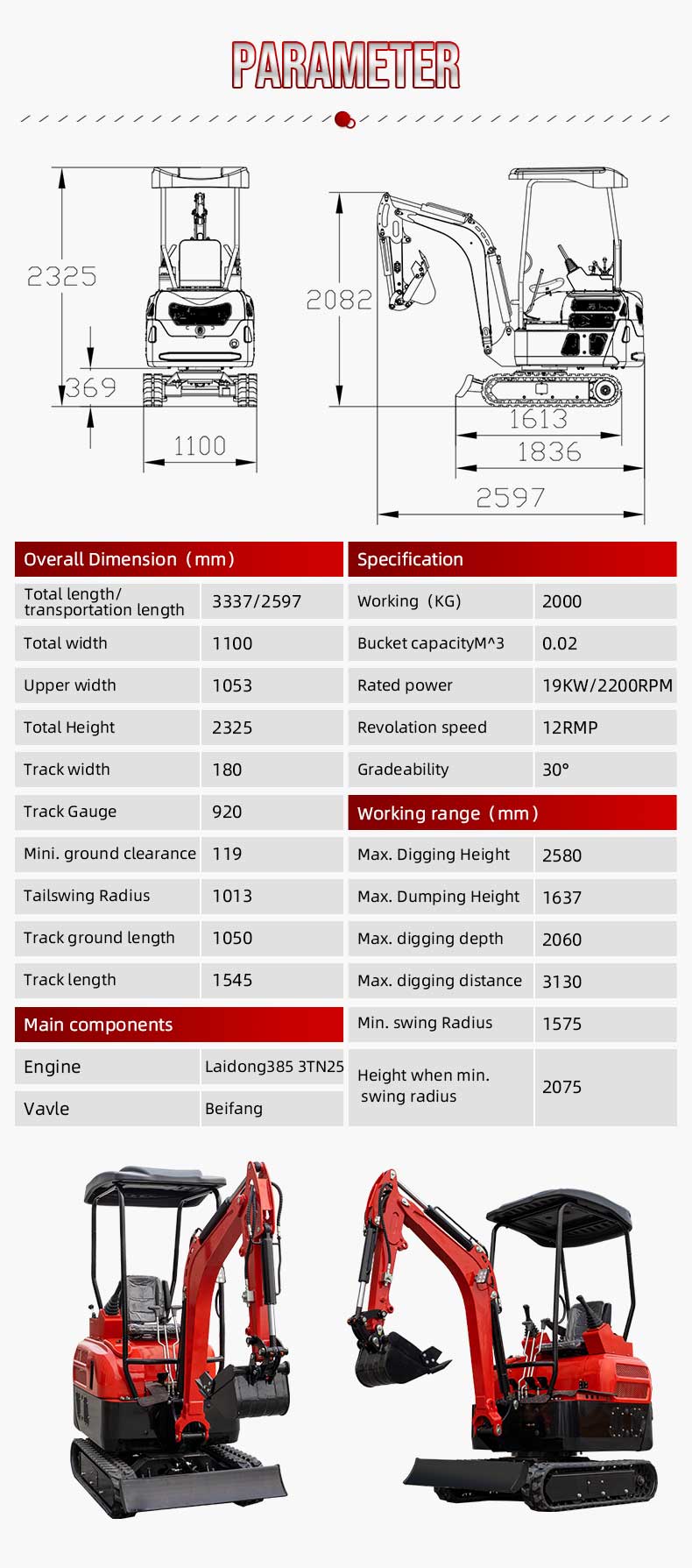

HT20-1 2ton Mini Excavator Parameter

Model:HT20-1
Engine:Laidong 385 3TN25
Main Valve:Beifang
Total length/transportation length:3337/2597mm
Total width:1100mm
Upper width:1053mm
Total height (cab roof):2325mm
Standard track plate width:180mm
Track Gauge:920mm
Minimum ground clearance:119mm
Tail turning radius:1013mm
Track ground length:1050mm
Track length:1545mm
Weight:2000kg
Bucket capacity:0.02m³
Rated power:19KW/2200RPM
Slewing speed :12RMP
Climbing capacity:30°
Maximum digging height:2580mm
Maximum unloading height:1637mm
Maximum digging depth:2060mm
Maximum digging distance:3130mm
Minimum Slewing Radius:1575mm
Maximum height at minimum turning radius :2075mm

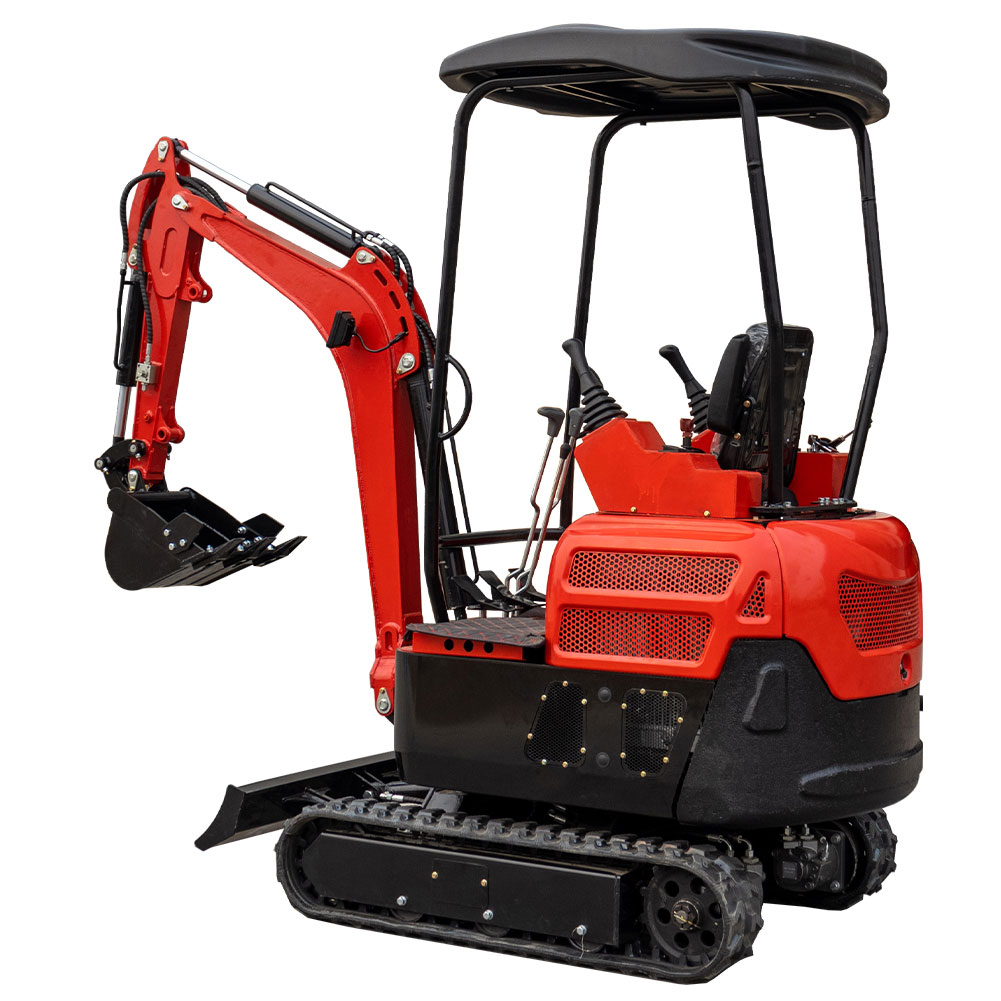

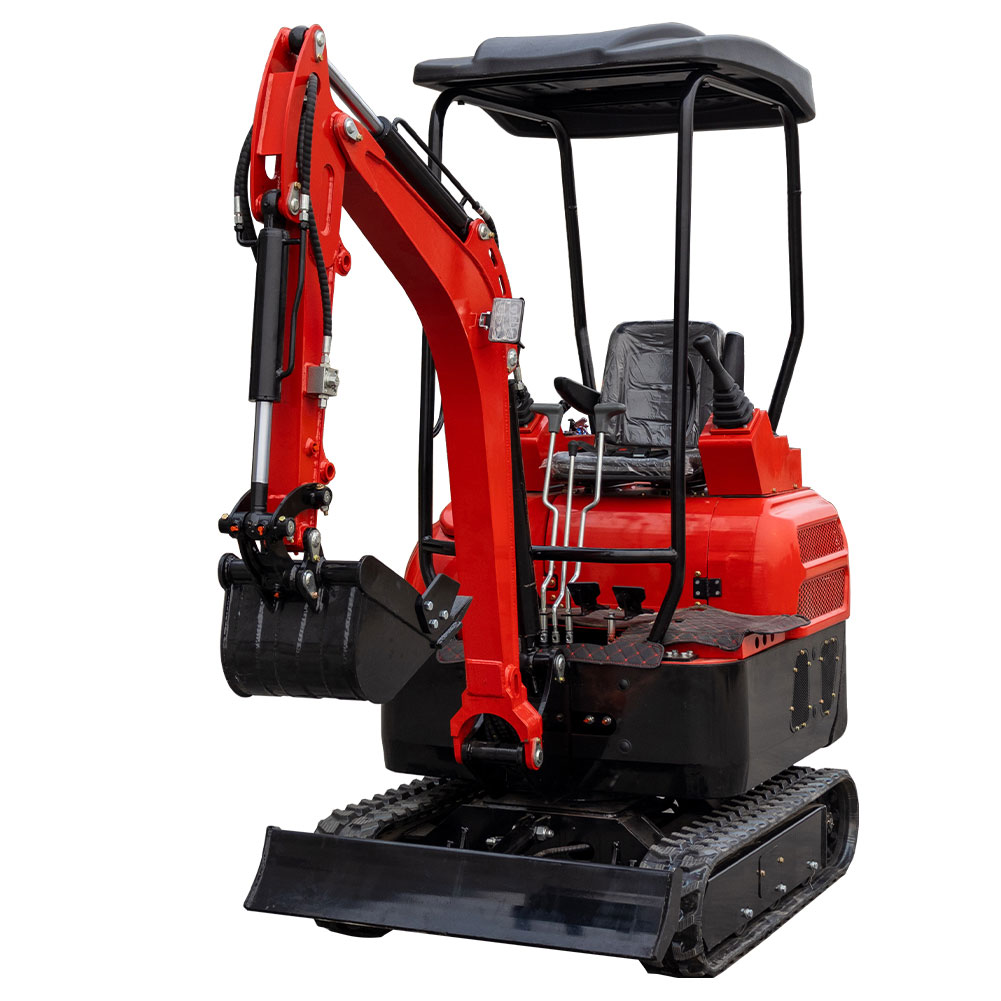

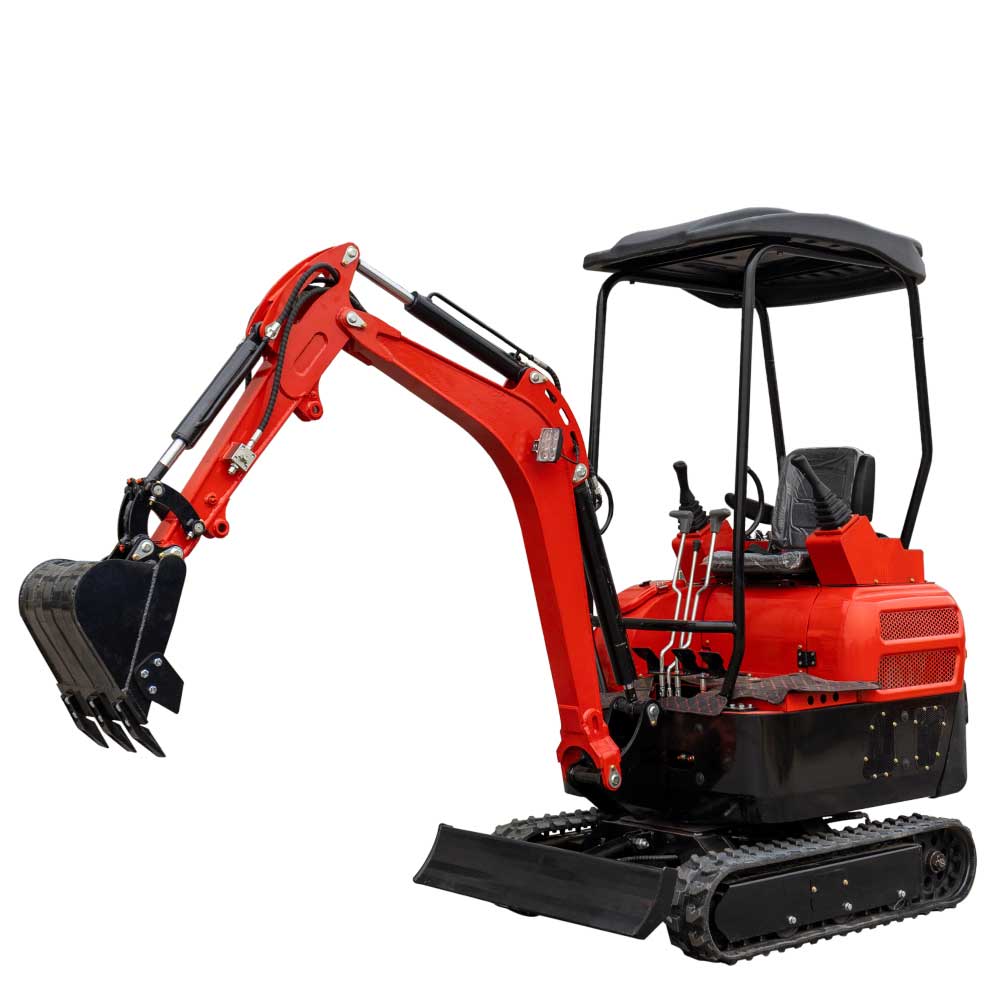

HT20-1 2ton Mini Excavator Images
