1000kg Crawler Mini Excavator With CE

Mini excavator is widely used in works, such as small projects, gardens, farmland, municipal works, vegetable greenhouse. It is with compact design, and with low oil consumption,and easy to maintain.Mini excavators have more advantages,such as:

1.Hydraulic pump is easy to maintain, long life

2.The retractable undercarriage lets you access and work in the tightest areas.

3.Rubber track no damage to cement, tile floor.

4.Dig-to-blade and dozer float features allow for easy clean up.

Contact Now E-mail Telephone WhatsApp

Product Details

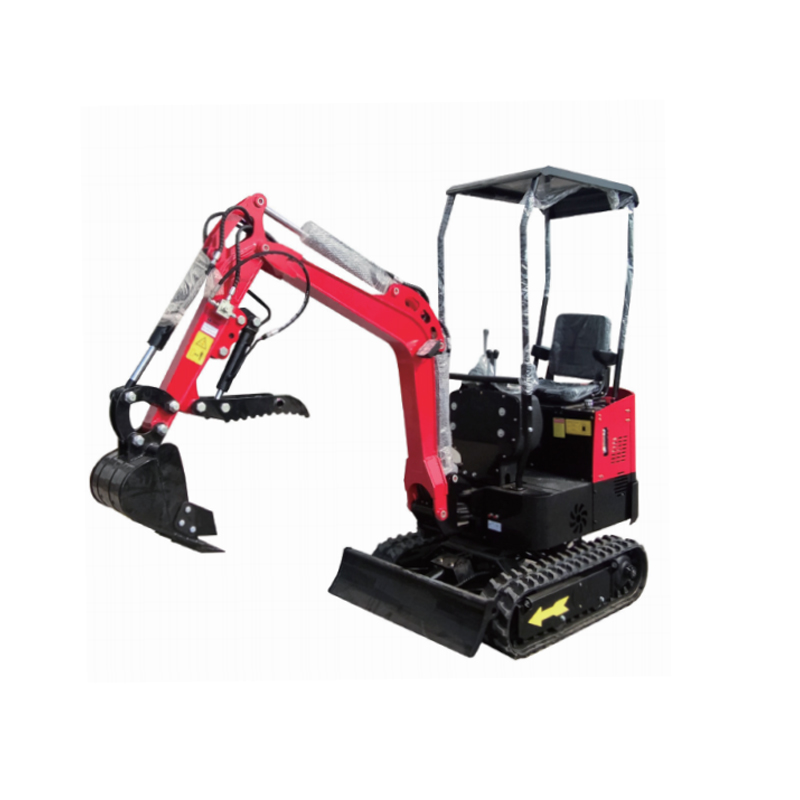

HT-10BZ Mini Excavator Instruction

1.Hydraulic pump is easy to maintain, long life

2.The retractable undercarriage lets you access and work in the tightest areas.

3.Rubber track no damage to cement, tile floor.

4.Dig-to-blade and dozer float features allow for easy clean up.

HT-10BZ Mini Excavator Parameter

Model:HT10bZ
Weight	1100kg
Digging bucket capacity	0.025cbm/140kg
Bucket width	380mm
Engine	B&S Gasoline engine
Rated power	8.5kw
Displacement	0.211 L
Bore stroke	70x55
Main pump	CBK-F6.8
Displacement	6.8ml/r
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN(OMS-2450)
Travel speed	1.5km/h
Main Demensions
Overall dimension( LxWxH)	2770x900/1100x1490 mm
Wheelbase	910 mm
Total length of track	1230mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
Main Demensions
Max. Digging depth	1650 mm
Max. Vertical digging depth	1375 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm
Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth of bulldozer blade	255 mm
