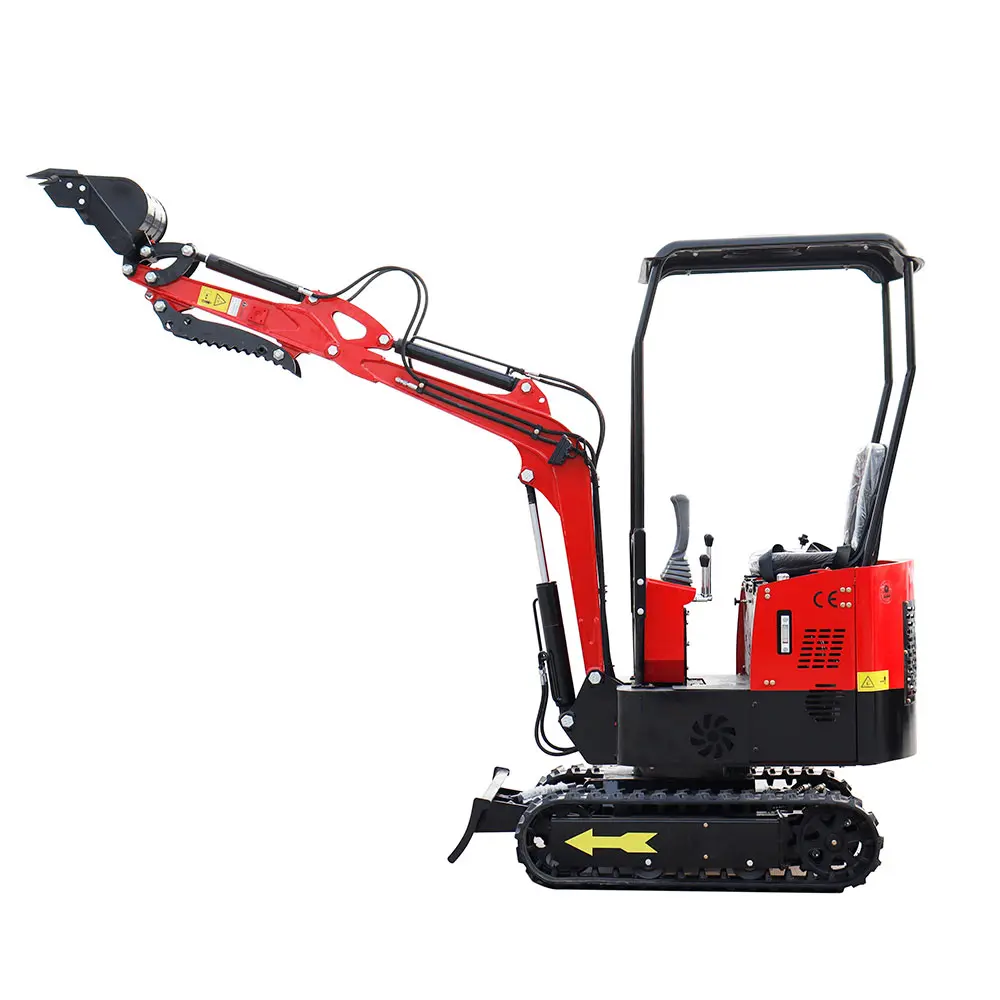

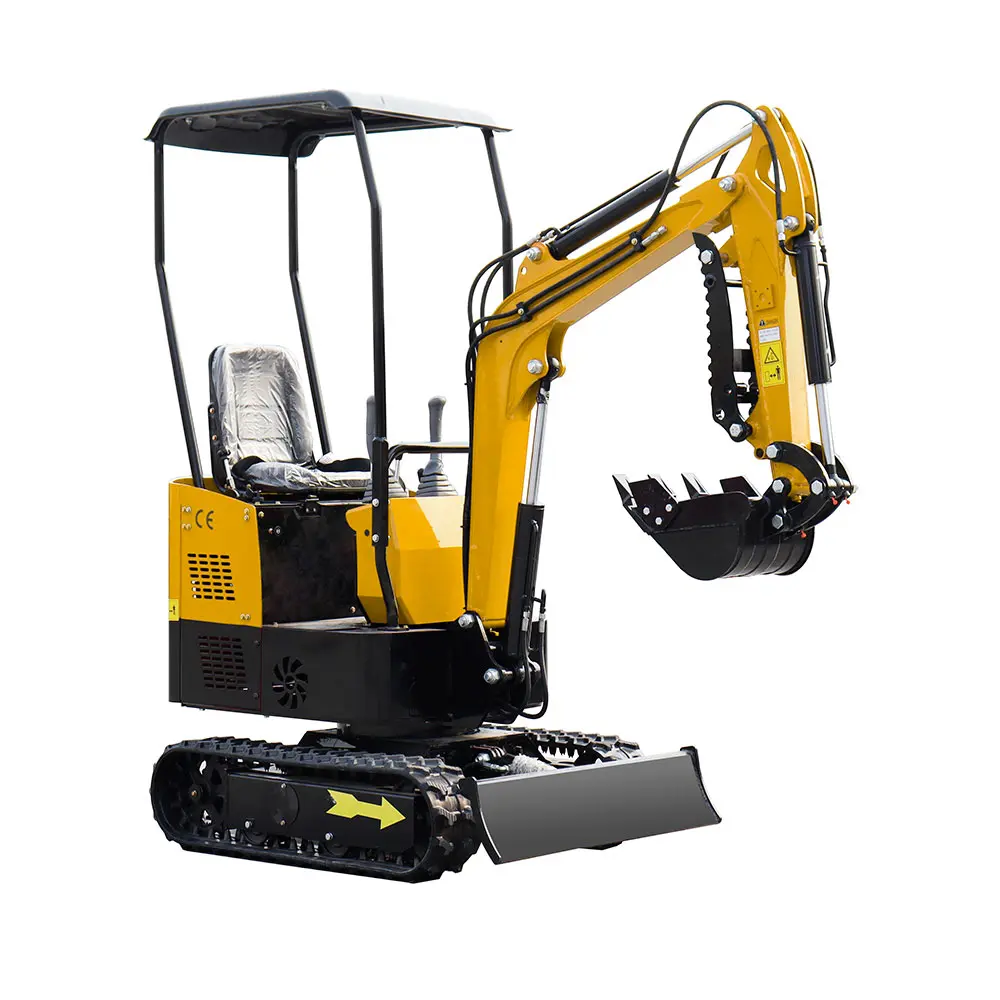

1ton Mini Excavator HT10H

HT10H 1ton Mini Excavator Advantages

perfectly matched hydraulics system

rato efficient engine

multiple attachments available

flexible body and compact design

stable tracks

durable design

Contact Now E-mail Telephone WhatsApp
Product Details

HT10H 1ton Mini Excavator Instruction

PERFECTLY MATCHED HYDRAULICS SYSTEM

This heavy-duty mini excavator contains a four-part hydraulic system that helps you maneuver the machine with ease and simplicity, and the hydraulic oil hose is in a fixed position to avoid touching it during construction.

RATO EFFICIENT ENGINE

This mini-excavator is powered by a premium RATO 15HP engine with up to 9.5KW of power for powerful yet fuel-efficient operation and superior heat distribution. Bid farewell to grating vibrations, savor flawless functioning, and anticipate its longevity.

MULTIPLE ATTACHMENTS AVAILABLE

There are attachments available for this compact excavator to use on a range of tasks.

Grasp and lift branches with a grapple and bucket; drill holes for fence posts with an auger; loosen soil with a ripper; handle concrete and asphalt rock with a hammer; remove and stack brush, roots, and stumps with a rake; and switch attachments quickly with a quick hitch.

FLEXIBLE BODY AND COMPACT DESIGN

With a maximum digging depth of 1750 mm, Hightop’s HT10 mini excavator is easy to maneuver and can work in limited locations such as backyards, gardens, alleys and narrow driveways.

STABLE TRACKS

Our compact excavators are made of strong and durable steel for great stability. Wider dozers coupled with rubber tracks allow the excavator to move over different surfaces and provide excellent traction without damaging pavement, interior floors or road

DURABLE DESIGN

The structural parts of the machine are processed by well-known manufacturers, and the whole vehicle is treated with shot blasting, pickling, phosphatizing and spraying, which increases the adhesion of the paint molecules, making it more durable and smoother.

HT10H 1ton Mini Excavator Parameter

Weight:1000kg

Digging bucket capacity:0.025cbm/120kg

Bucket width:380mm

Engine:KOOP 192F

Optional Engine:Rato,Yoop,Koop,Changchai,Briggs & Stratton

Bore stroke:Single cylinder, fan cool

Rated power:7kw/3000r/min

Displacement:6.8ml/r

Travel speed:1.5km/h

Overll dimension( LxWxH):2900 x 930 x 2180 mm

Wheelbase:910 mm

Total length of track:1230mm

Platform ground clearance:380mm

Platform back turning radius:784 mm

Chassis width:896 mm

Track width:180 mm

Chassis ground clearance:132 mm

Track height:320 mm

Max. Digging depth:1750 mm

Max. Vertical digging depth:1550 mm

Max. Digging height:2610 mm

Max. Dumping height:1850 mm

Max. Digging radius on ground:3050 mm

Min. Rotation radius:1330 mm

Max. Upgrade height of bulldozer blade:345 mm

Max. Digging depth of bulldozer blade:255 mm

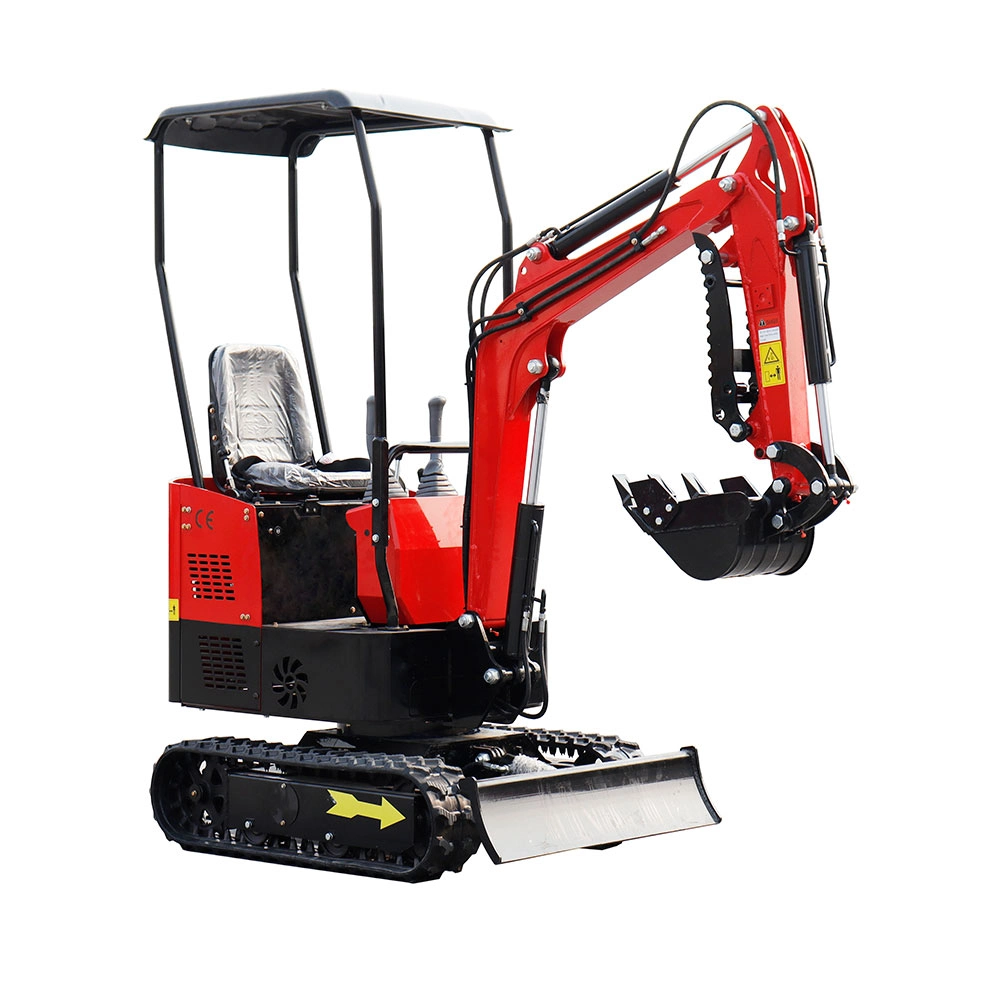

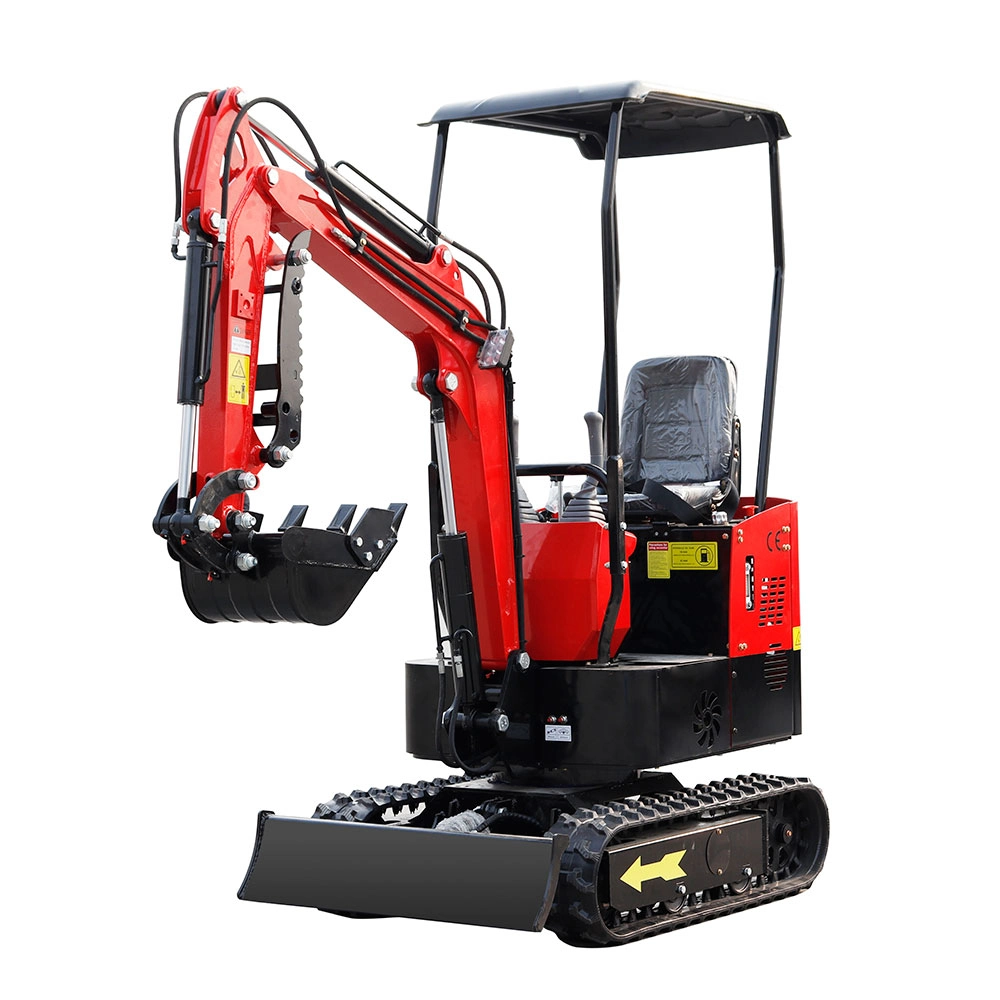

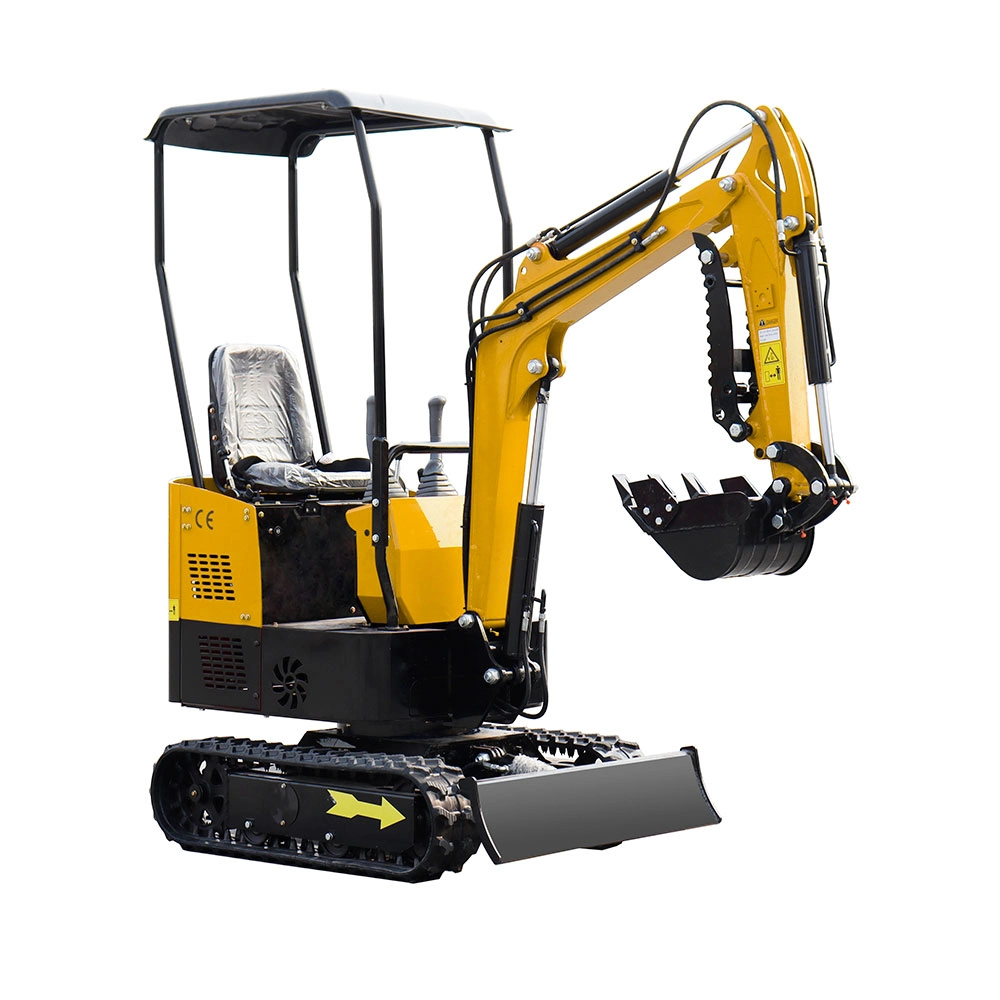

HT10H 1ton Mini Excavator Images
