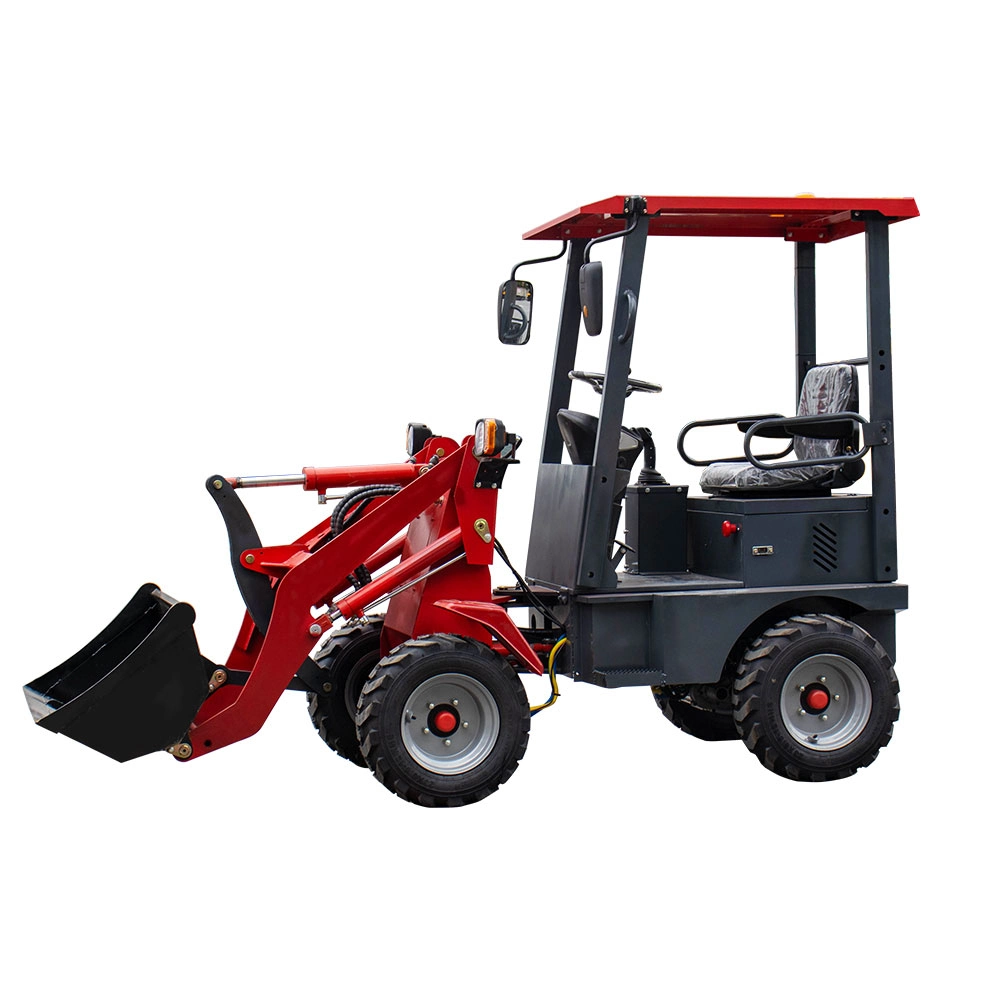

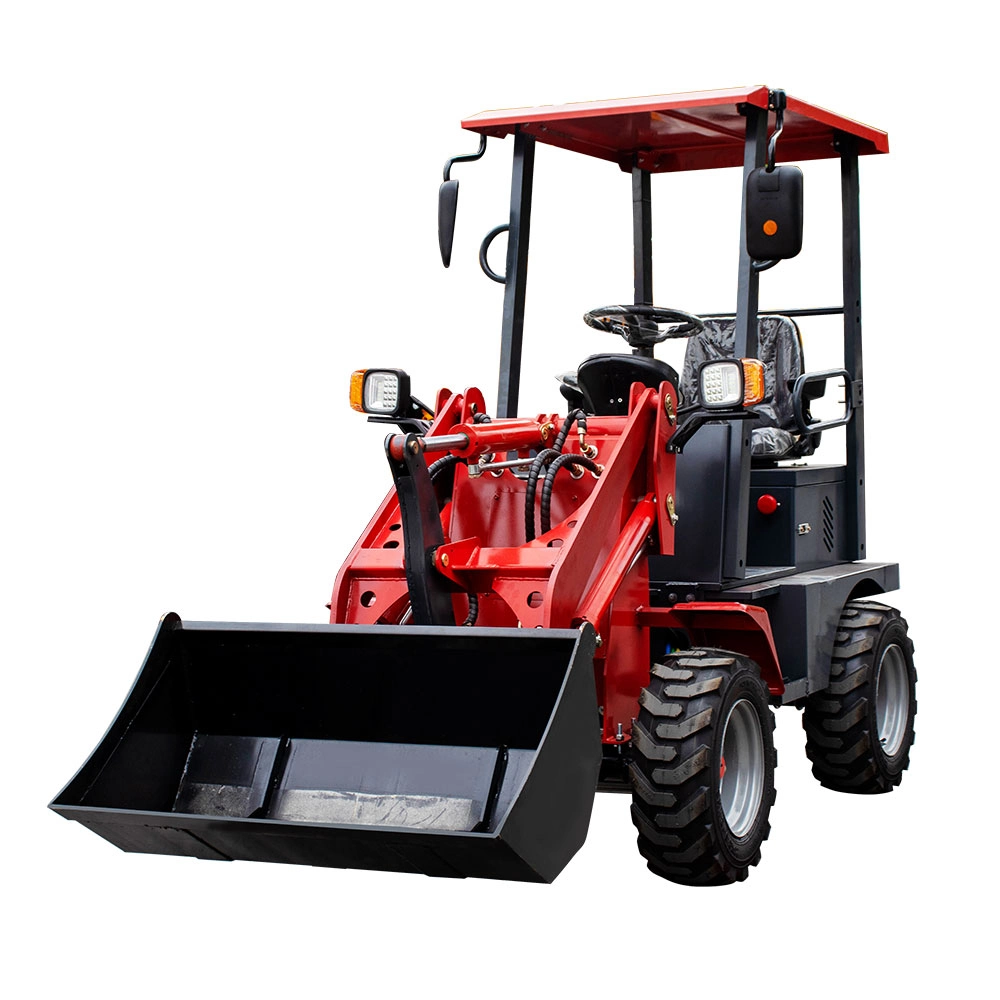

Mini Wheel Loader HT-150E

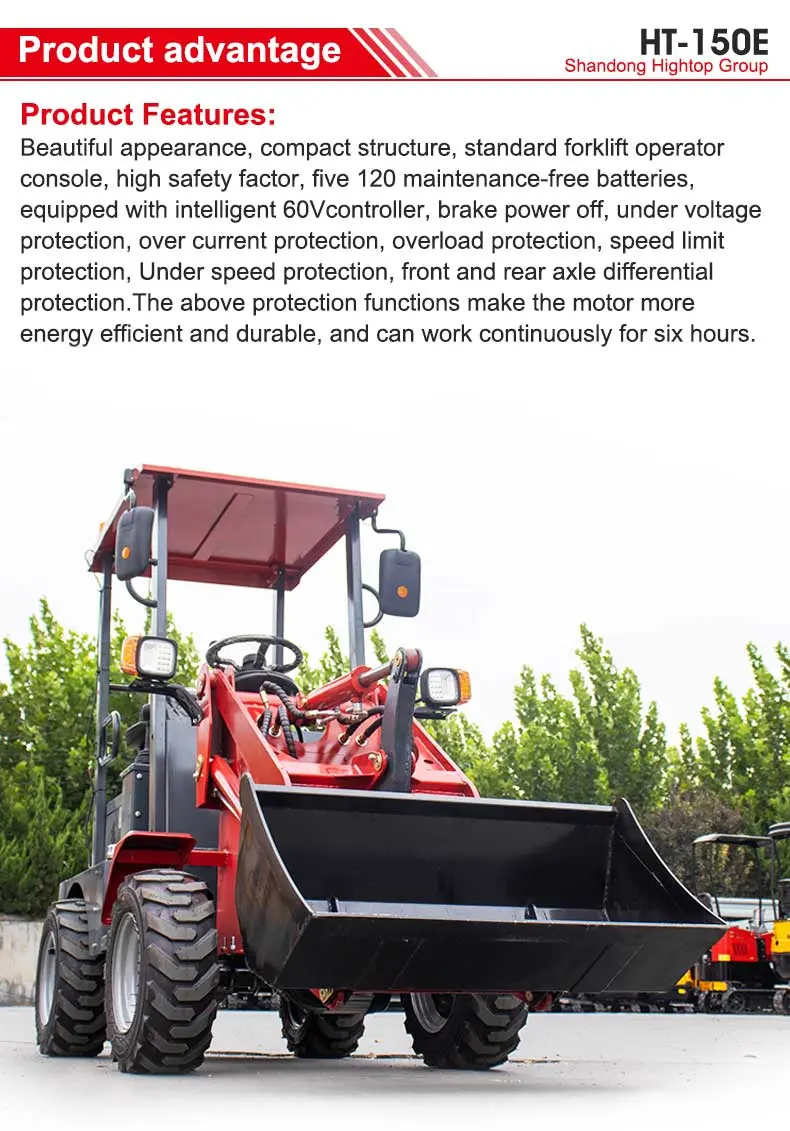

HT-150E Mini Wheel Loader Advantage

New energy and environmental protection design.

Increased bucket

More wear-resistant tires

Contact Now E-mail Telephone WhatsApp
Product Details

HT-150E Mini Wheel Loader Instruction

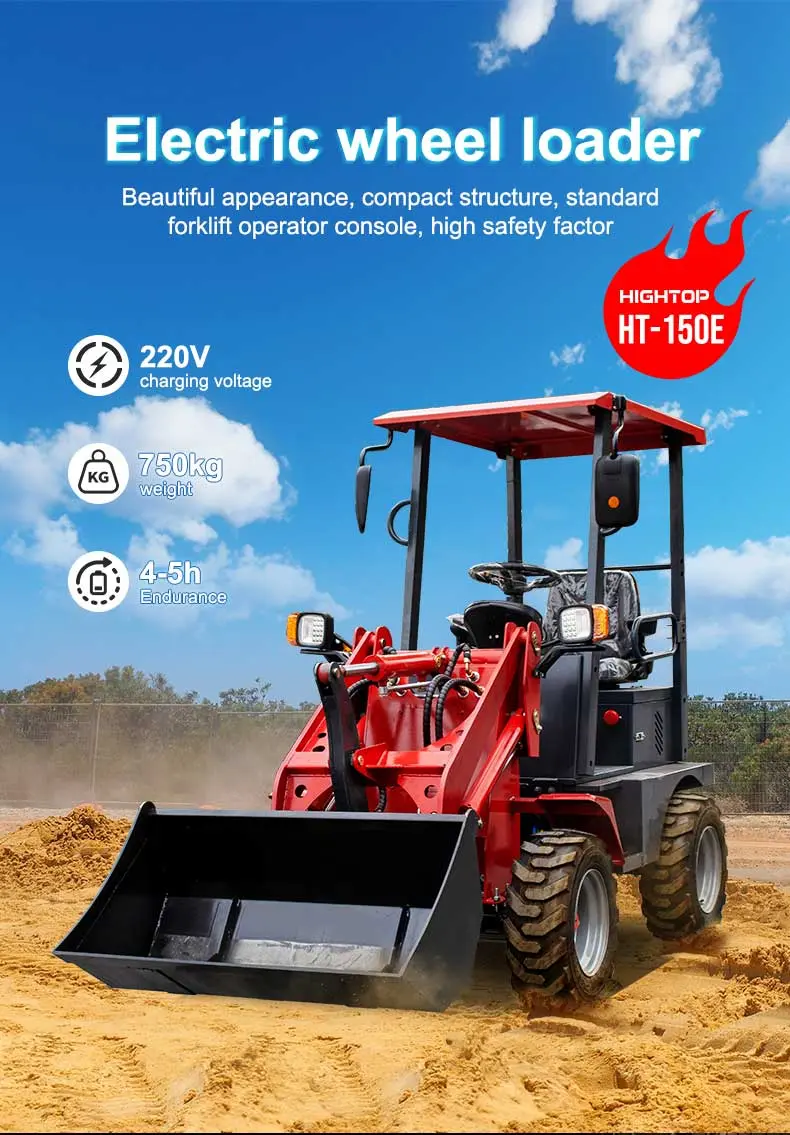

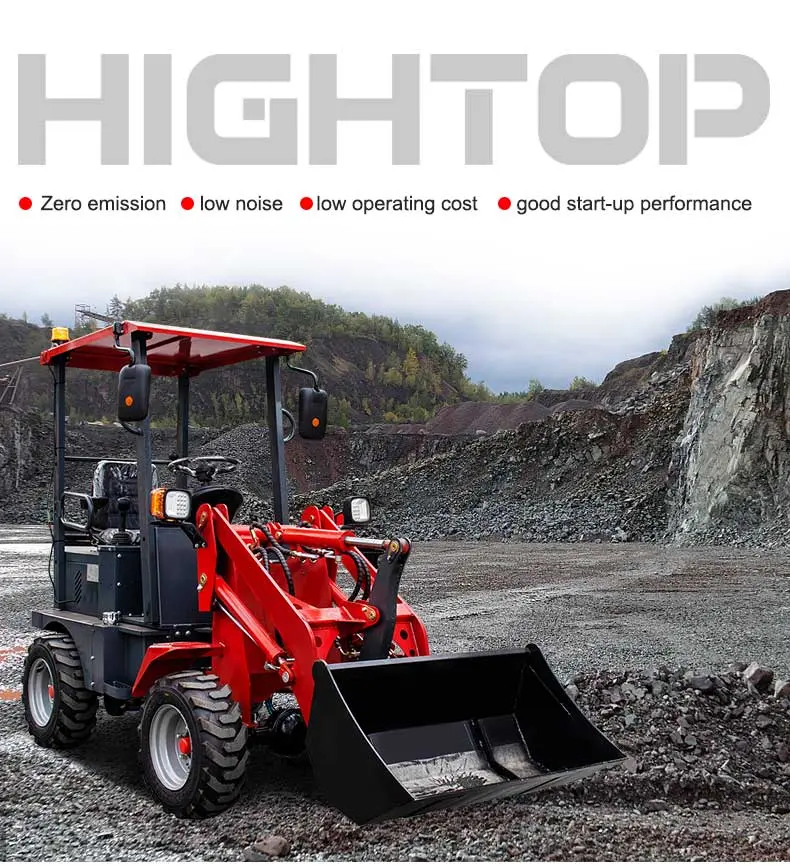

NEW ENERGY ENVIRONMENTAL PROTECTION DESIGN

Small electric loaders use electricity as a power source and do not require fuel, so they do not emit harmful gases during operation, which is friendly to the environment.

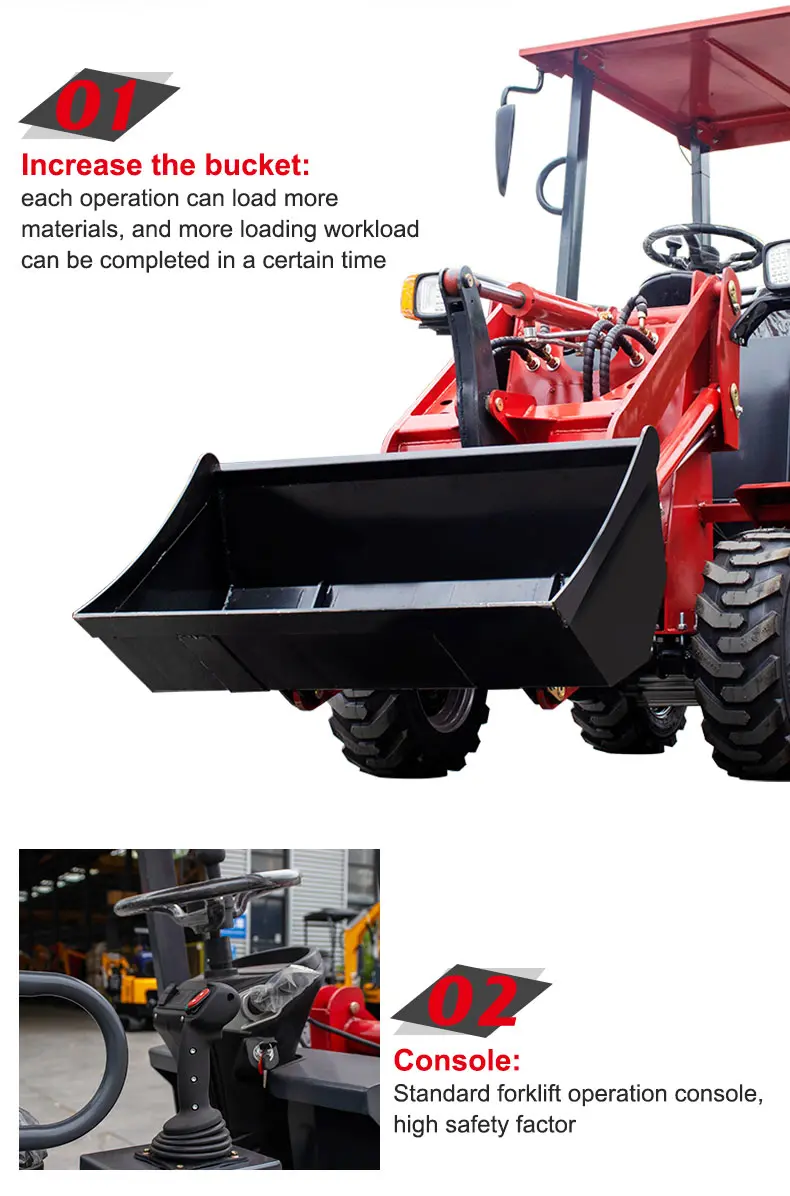

INCREASE THE BUCKET

Each operation can load more materials, and more loading workload can be completed in a certain time

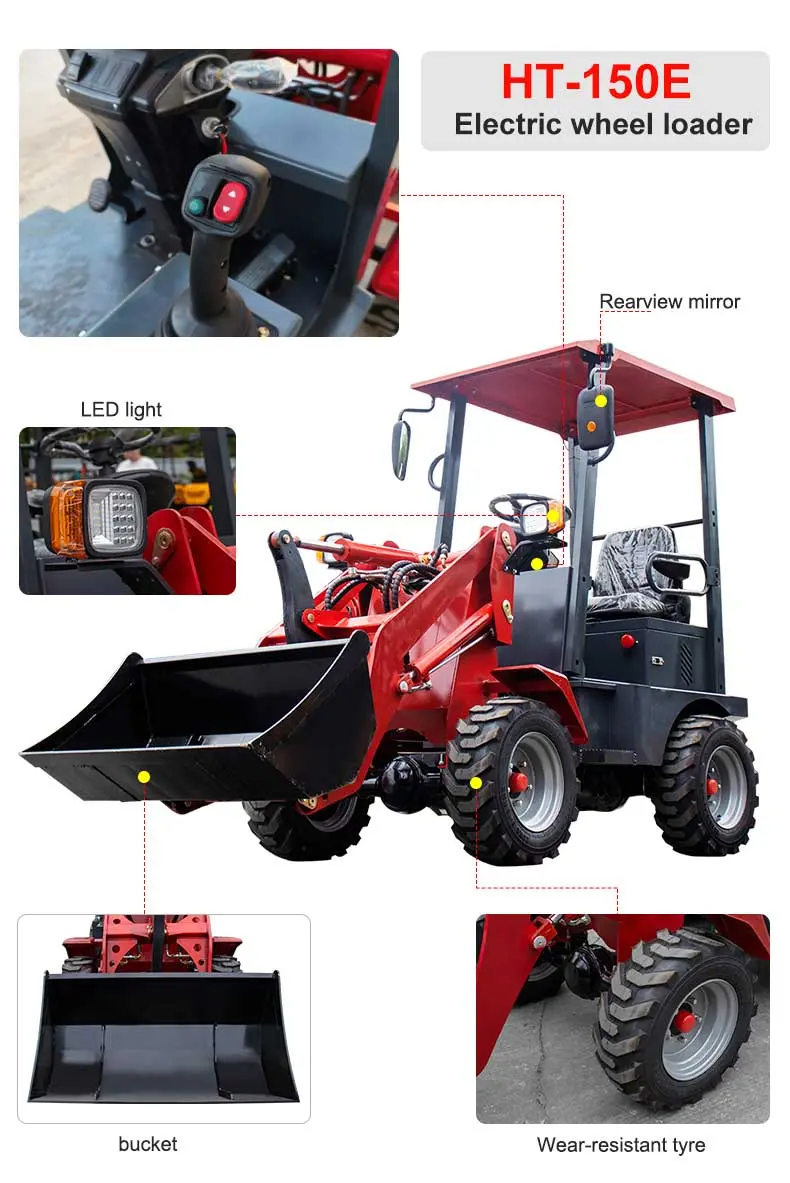

CONSOLE

Standard forklift operation console, high safety factor

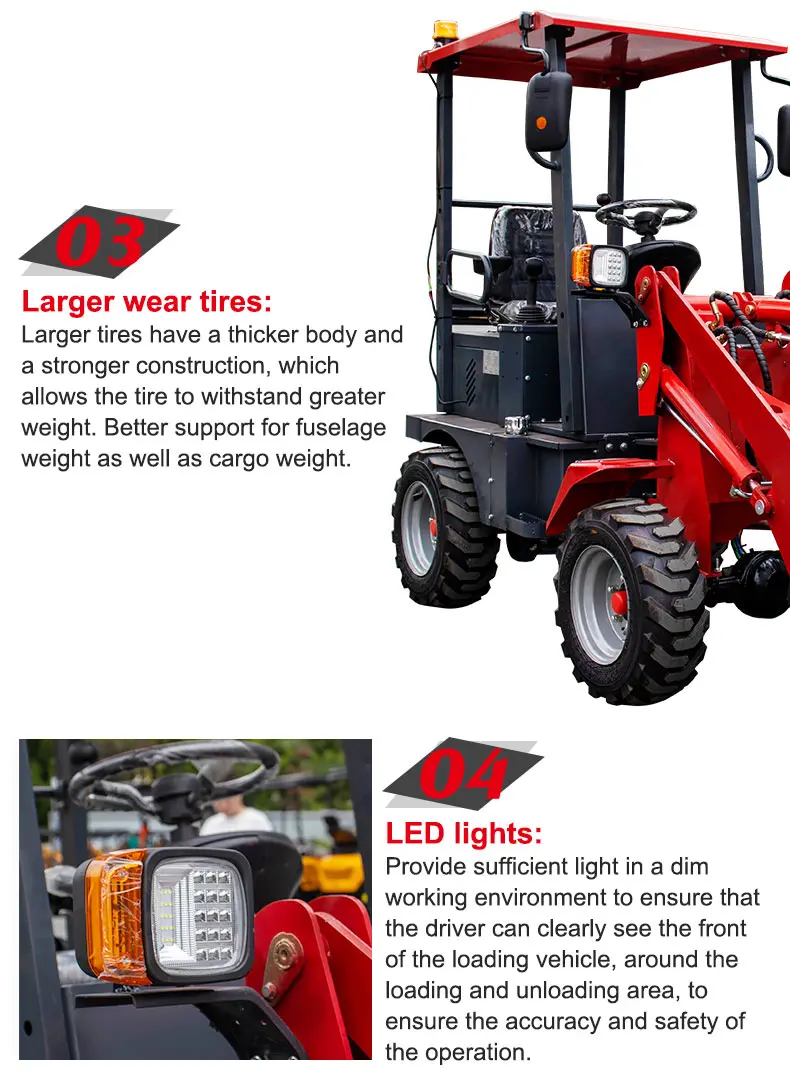

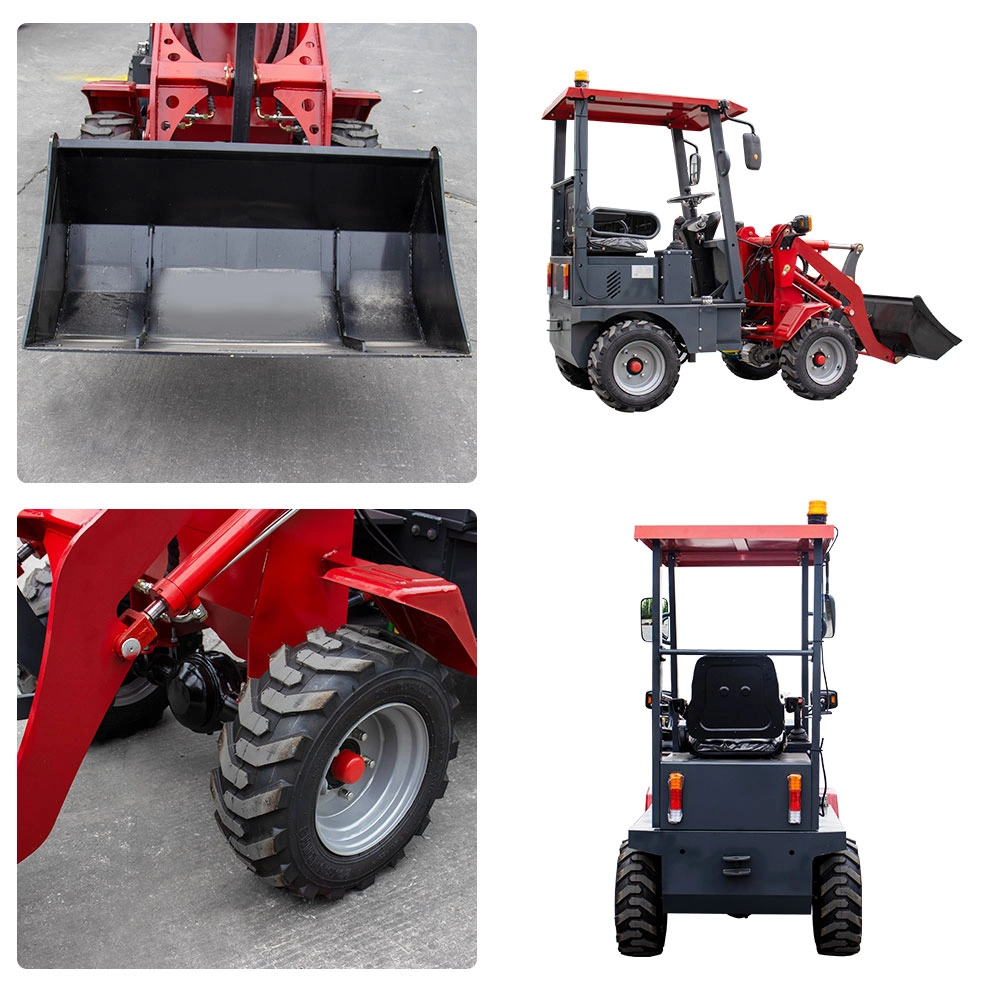

LARGER WEAR TIRES

Larger tires have a thicker body and a stronger construction, which allows the tire to withstand greater weight. Better support for fuselage weight as well as cargo weight.

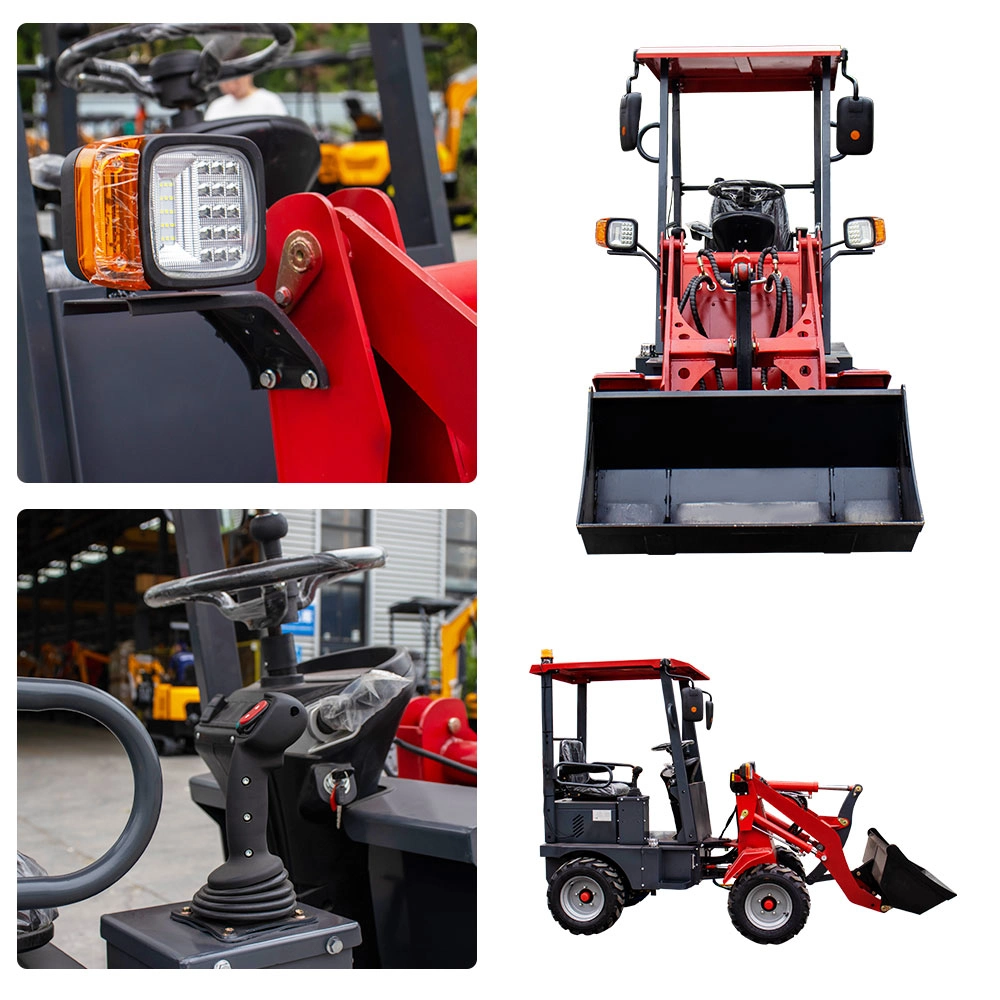

LED LIGHTS

Provide sufficient light in a dim working environment to ensure that the driver can clearly see the front of the loading vehicle, around the loading and unloading area, to ensure the accuracy and safety of the operation.

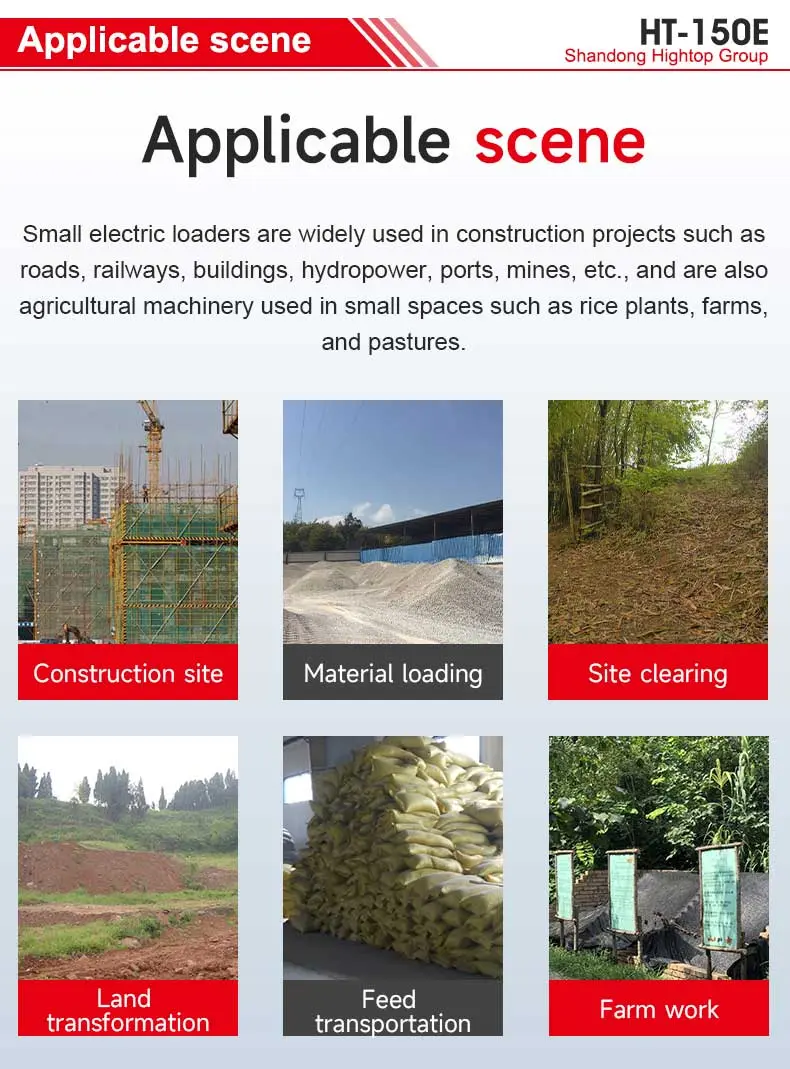

APPLICABLE SCENE

Small electric loaders are widely used in construction projects such as roads, railways, buildings, hydropower, ports, mines, etc., and are also agricultural machinery used in small spaces such as rice plants, farms, and pastures.

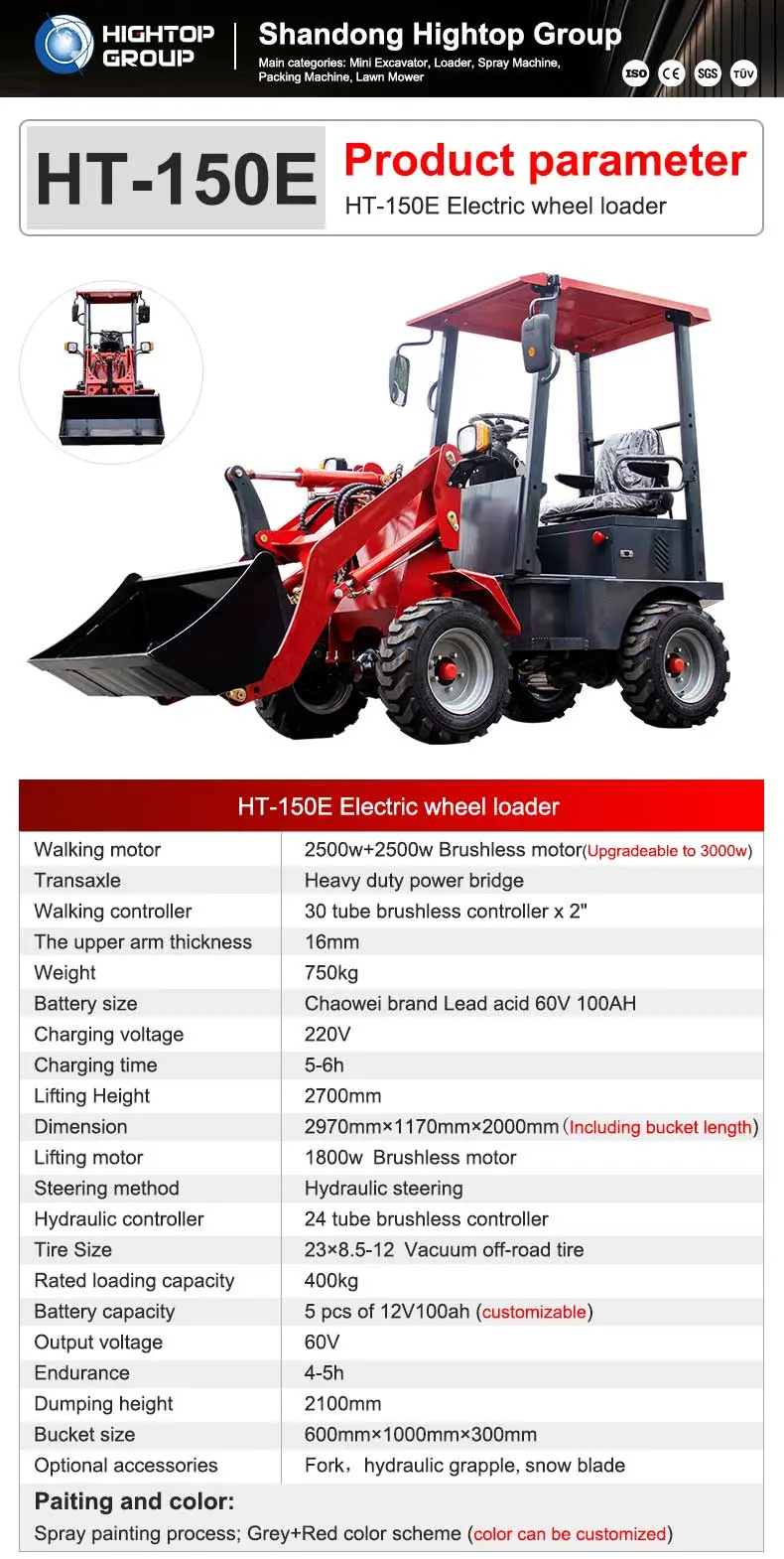

Walking motor :2500w+2500w Brushless motor(Upgradeable to 3000w)

transaxle :1:35Heavy duty power bridge

Walking controller:30 tube brushless controller x 2

The upper arm thickness:16mm

Weight:750kg

Battery size: Chaowei brand Lead acid 60V 100AH

charging voltage:220V

Charging time :5-6h

Lifting Height :2700mm

Dimension:2970×1170×2000mm(Including bucket length)

paiting and color:Spray painting process; Grey+Red color scheme (color can be customized)

Lifting motor:1800wBrushless motor

Steering method: Hydraulic steering

Hydraulic controller:24 tube brushless controller

Tire Size:23×8.5-12Vacuum off-road tire

rated loading capacity:400kg

Battery capacity:5 pcs of 12V100ah (customizable)

Output voltage:60V

Endurance:4-5h

Dumping height:2100mm

bucket size:600×1000×300mm

Optional accessories:Fork,hydraulic grapple,snow blade

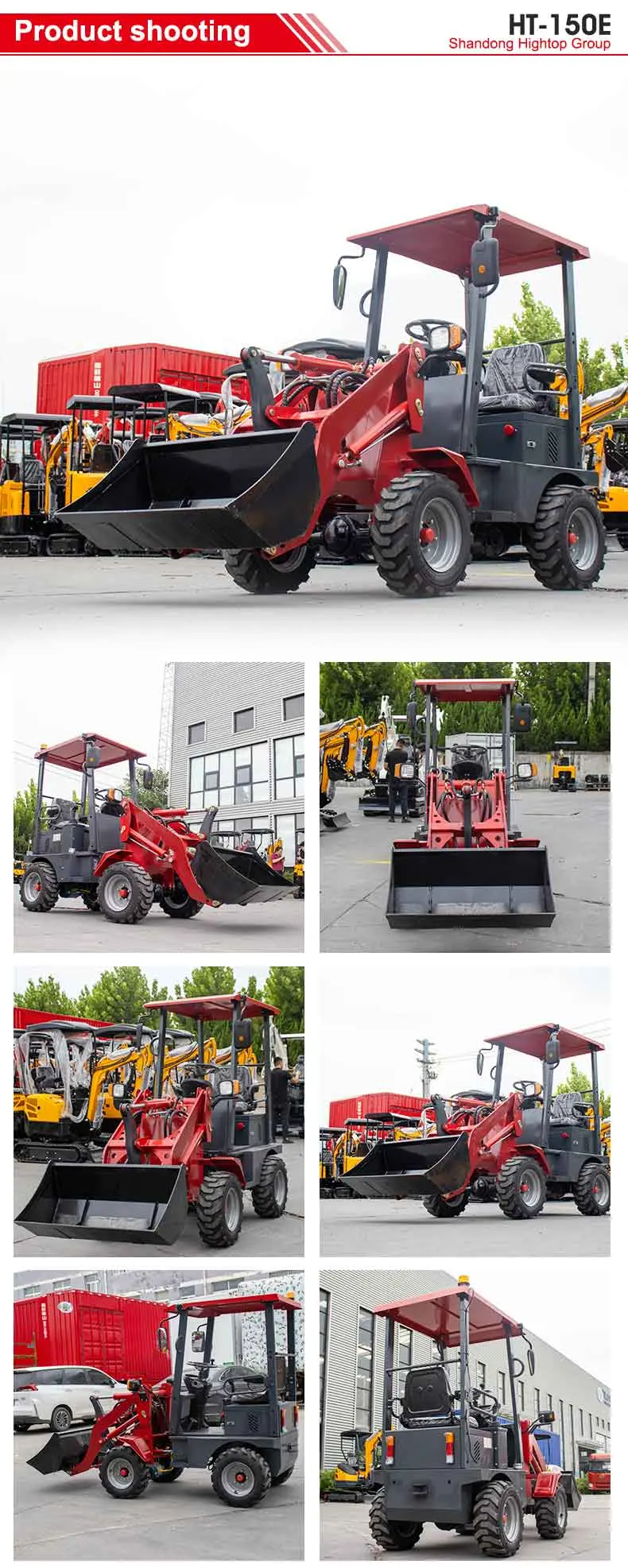

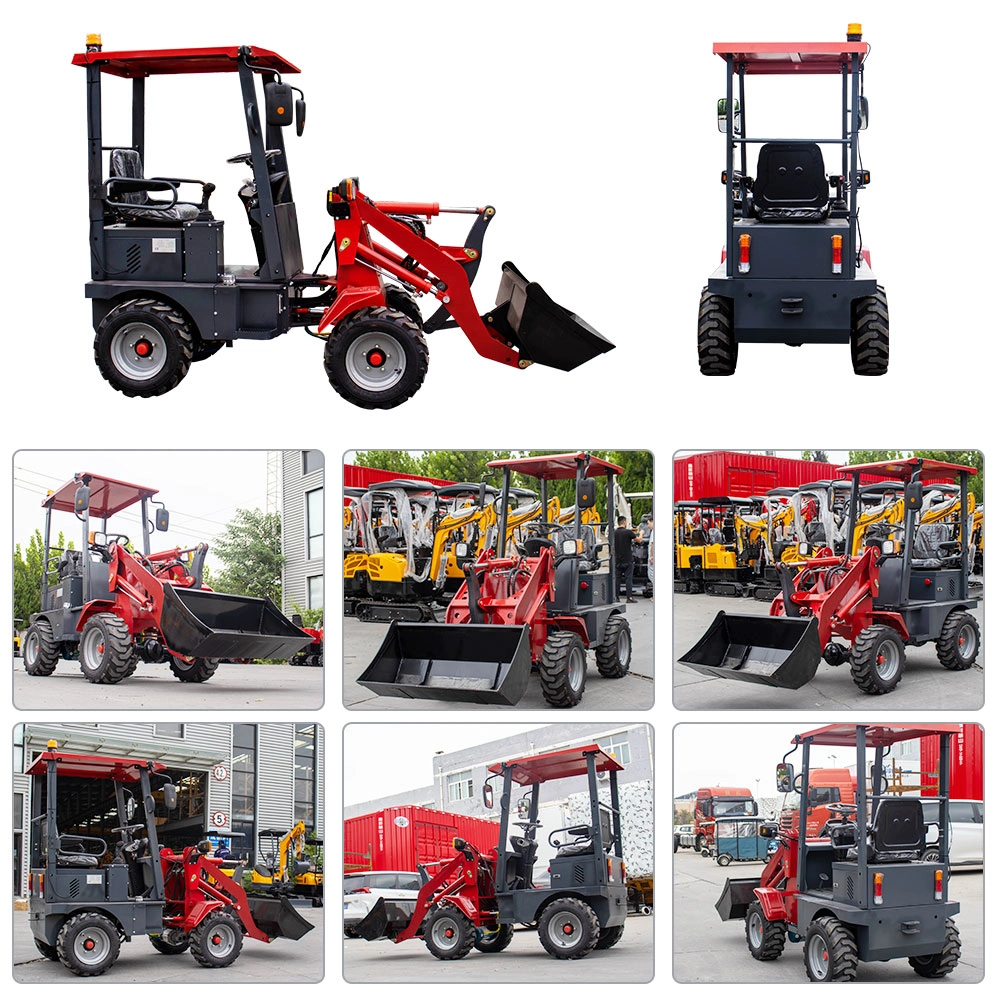

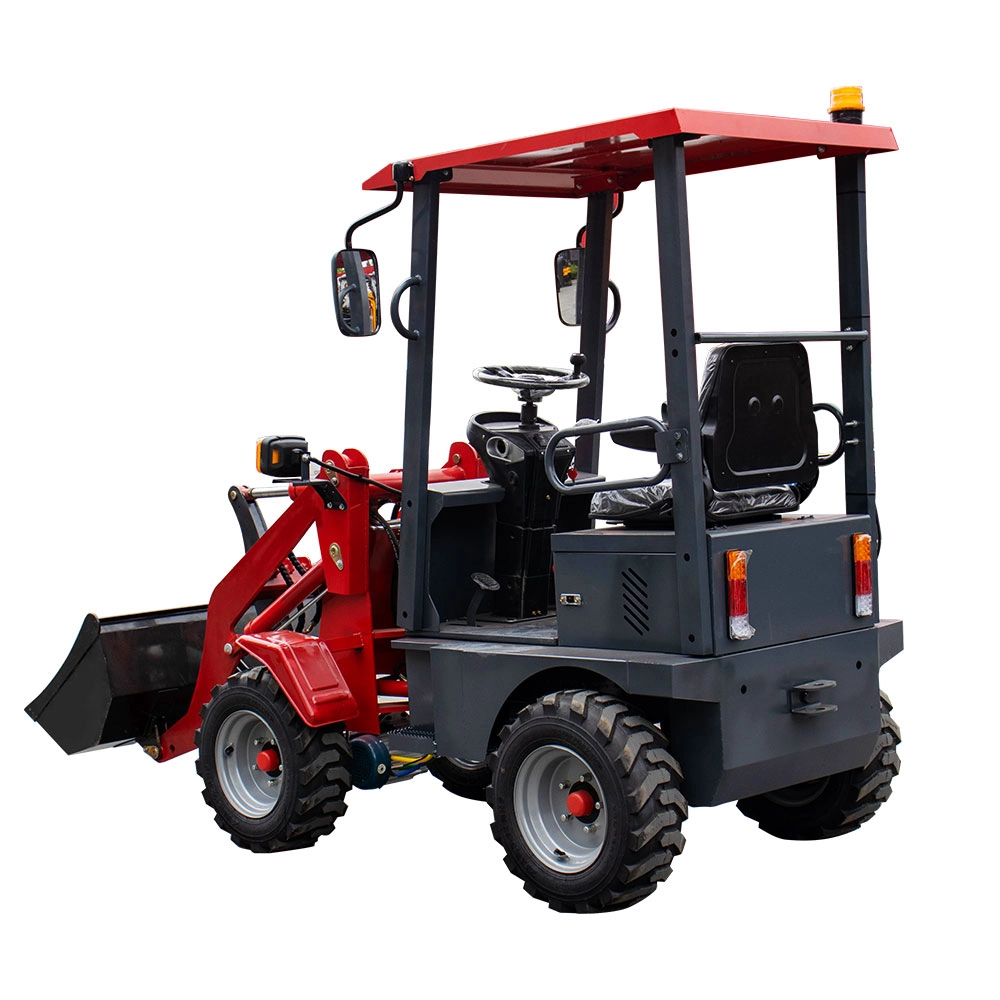

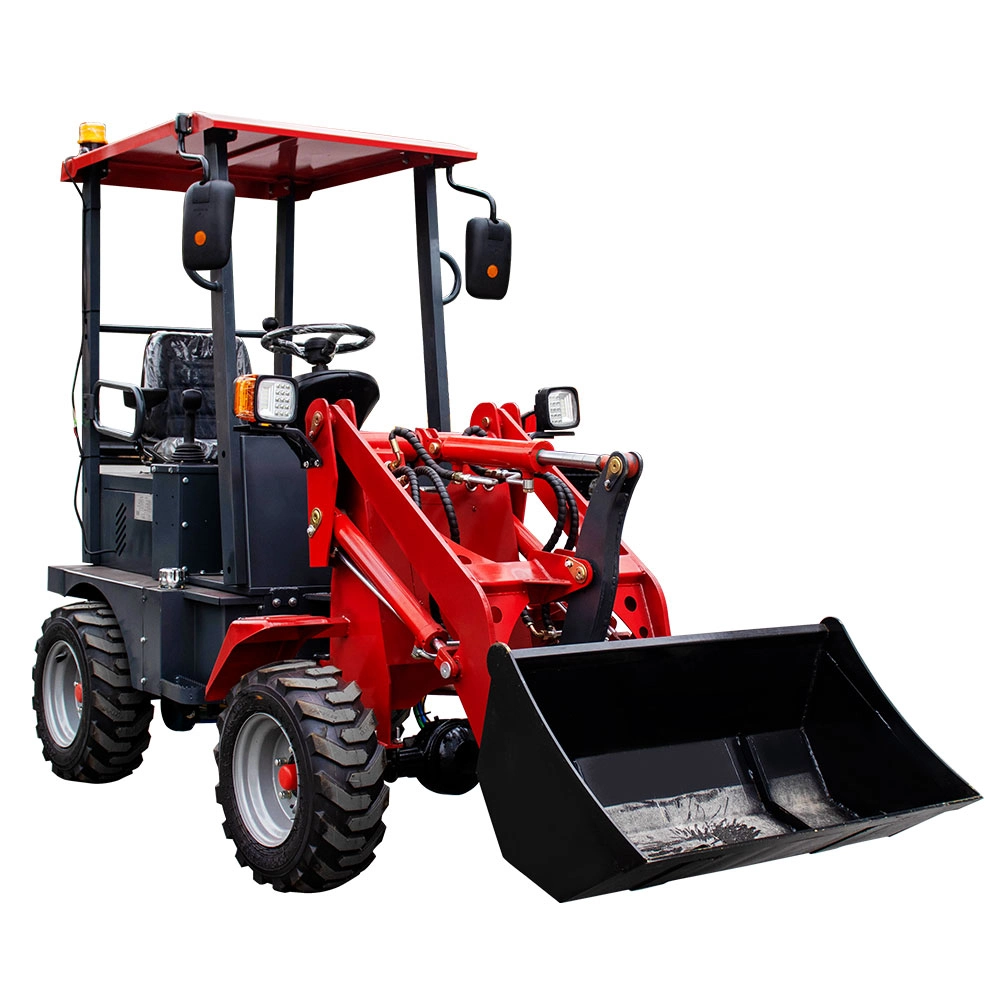

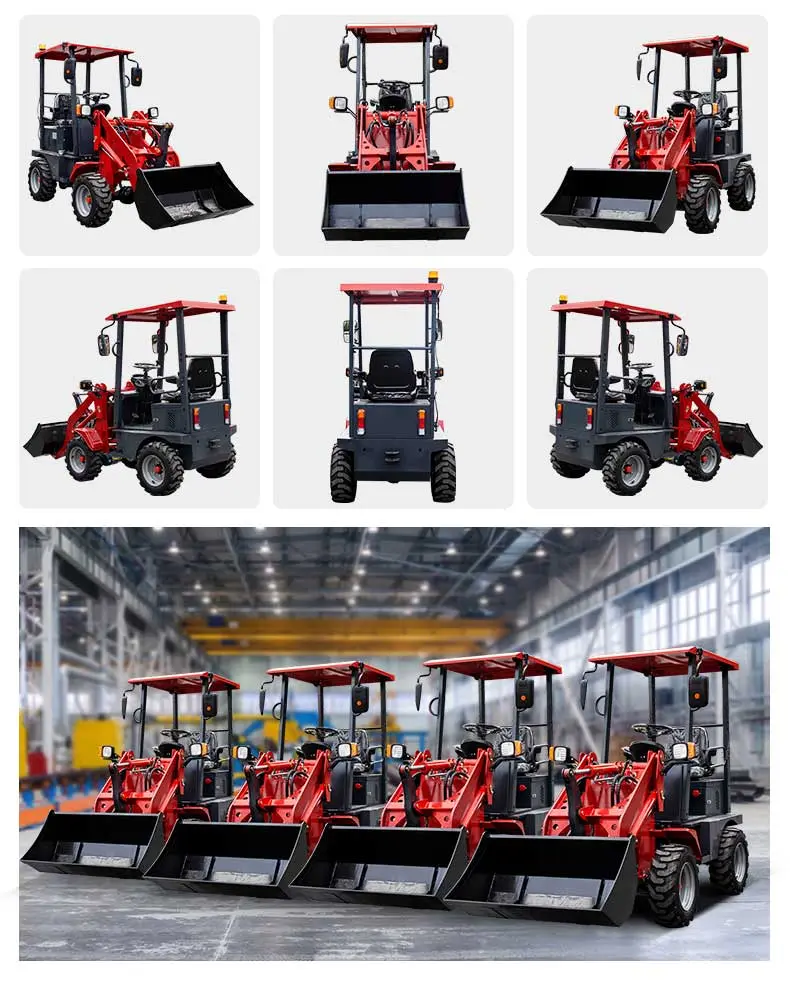

HT-150E Mini Wheel Loader Images
