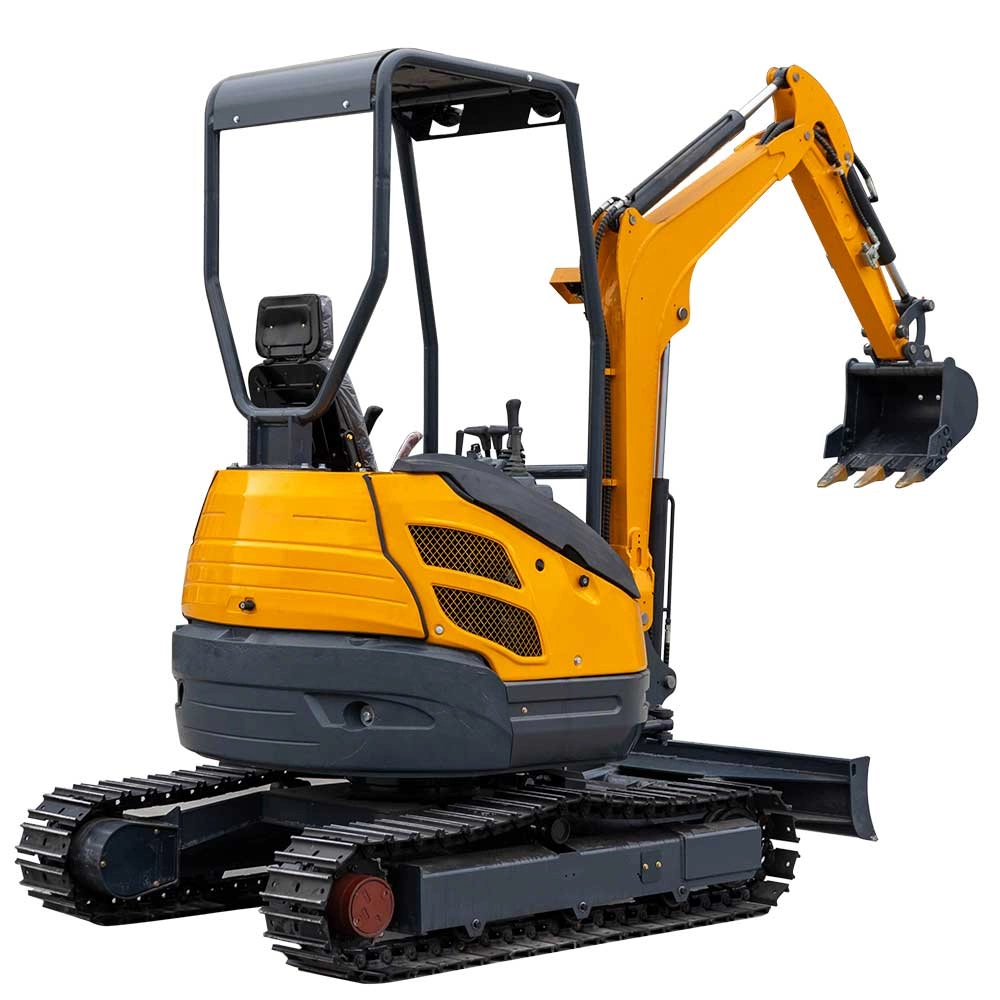

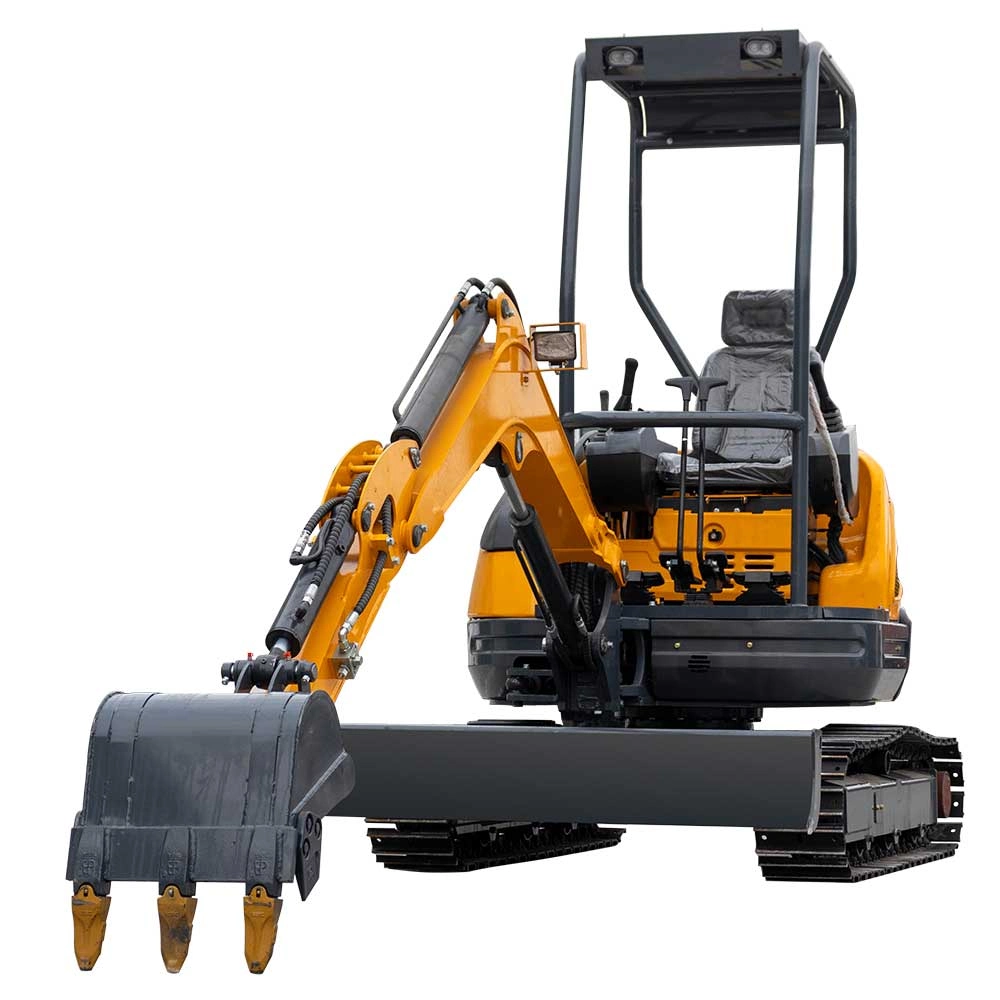

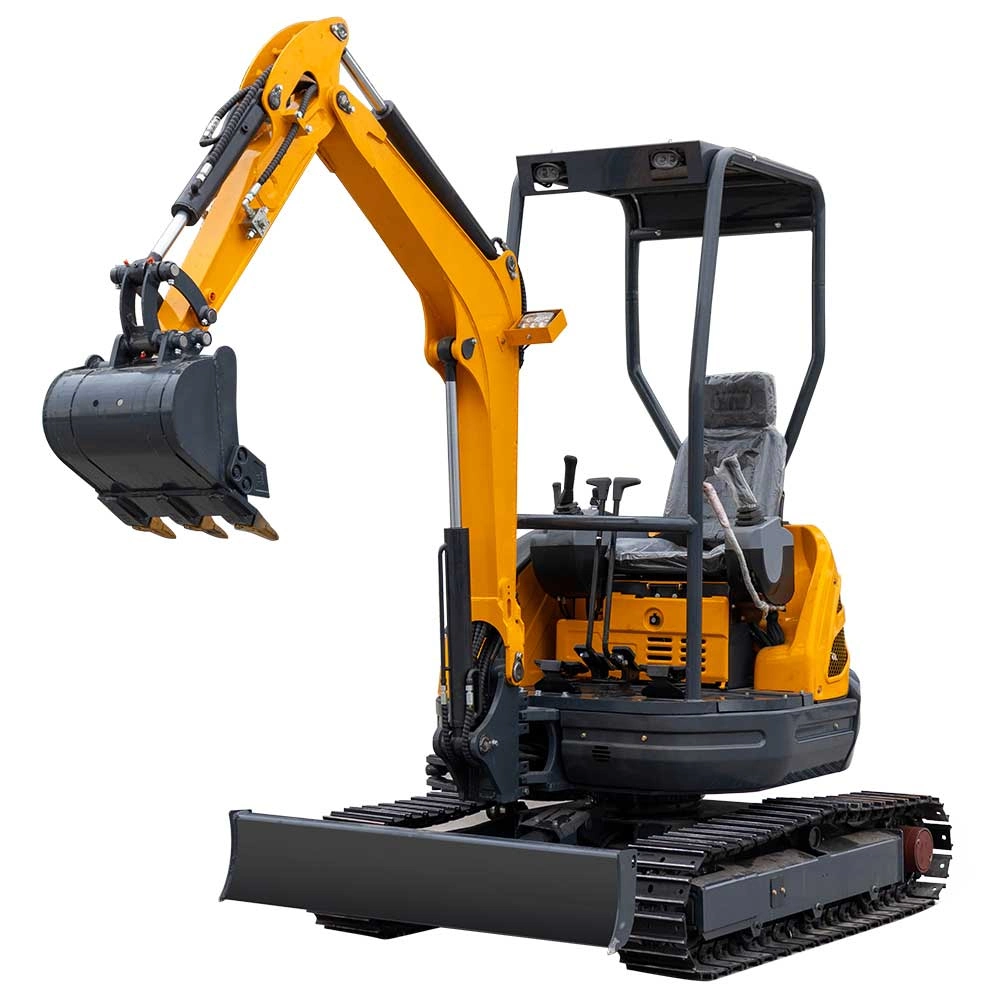

Mini Excavator 2500KG

HT25 Excavator Instruction

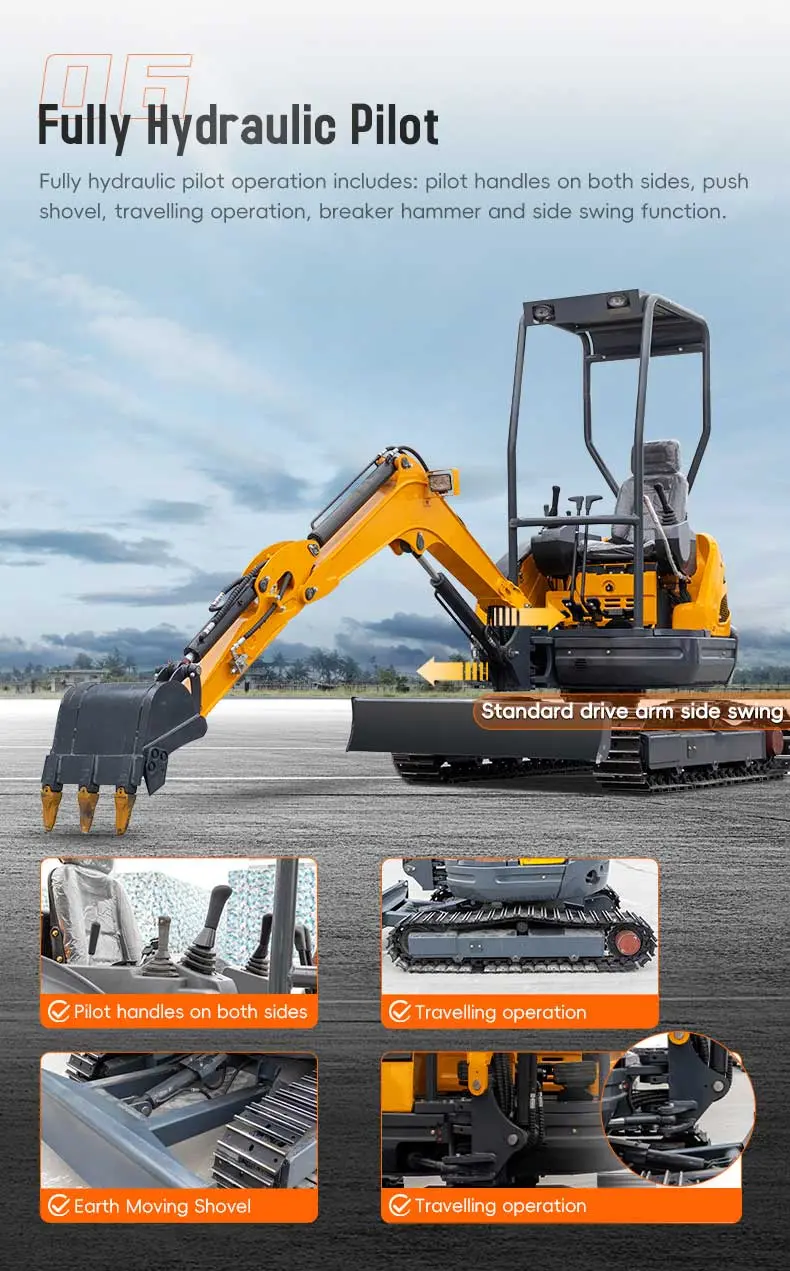

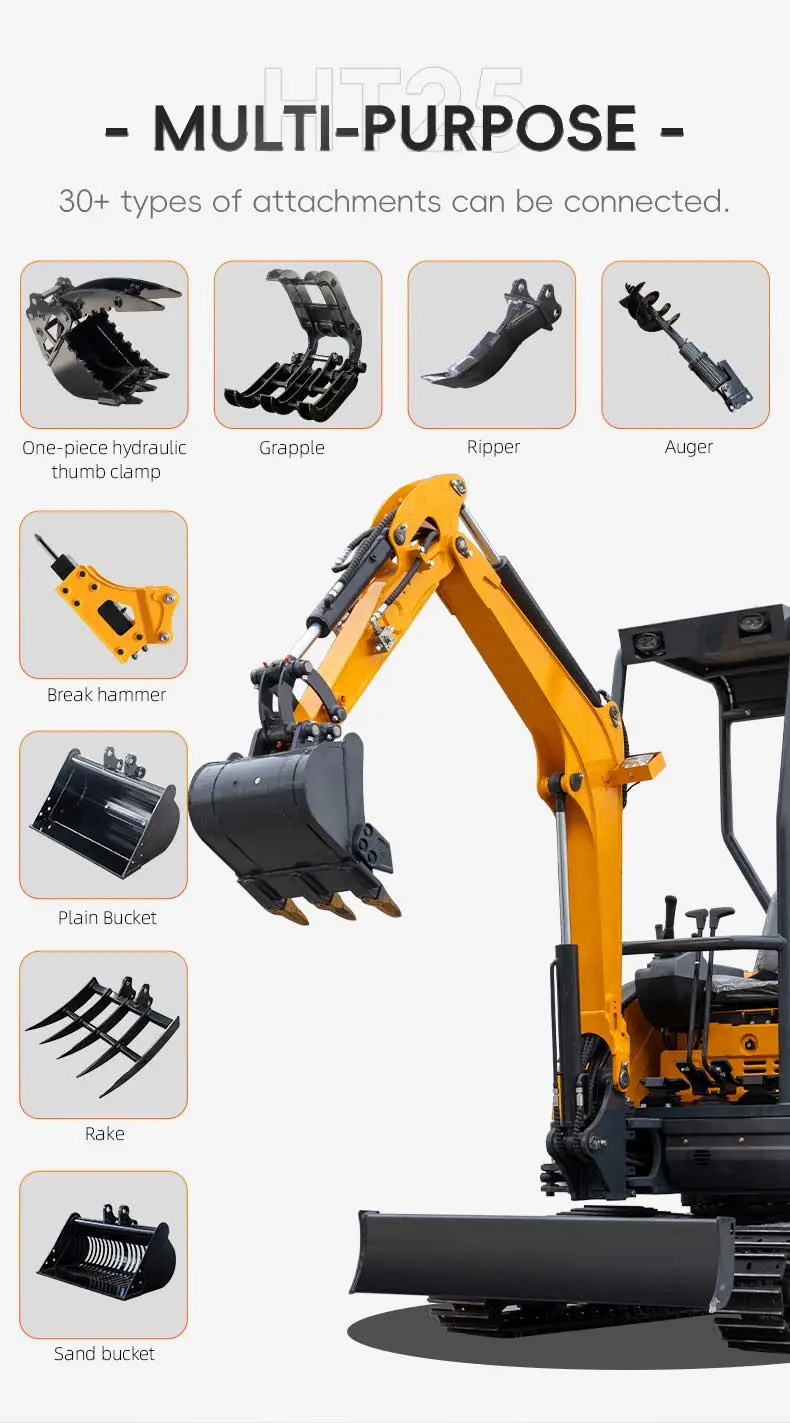

25 cover design sheet metal stamping mold one-piece molding, steel crawler walking track, select the Japanese brand Kubota 1105 engine, full hydraulic pilot operation includes: both sides of the pilot handle, bulldozing shovels, walking operation, crushing hammer and side pendulum function, the work of the time, after the engine is started, first of all to pull down the safety locks after the whole car will have action, which can also effectively protect the driver an effective This can also effectively protect the driver with an effective safety protection function.

Driving function:

25 optional key power-off function, most models have a mechanical power-off switch, before driving must first open the power master switch to fire, and so off the car is the need to turn off the switch, if the customer does not turn off the words, it will lead to the battery in the electricity is consumed, the next time to start the engine can not be caused to start, and this key power supply to avoid the occurrence of such a problem, turn off the vehicle key off the engine, the The power supply will automatically cut off the power.

Antifreeze refueling port: the factory is -25 degrees, the customer in the replacement is based on the customer's local temperature to choose the time of the antifreeze.

Hydraulic oil refueling port: capacity of 29 liters, filling 46 high-pressure wear-resistant hydraulic oil.

Battery: 12V45AH

Diesel oil refueling port:

Diesel fuel using a large capacity of 30 liters, plastic technology, can keep diesel fuel does not deteriorate for a long time, to protect the engine life.

Product advantages:

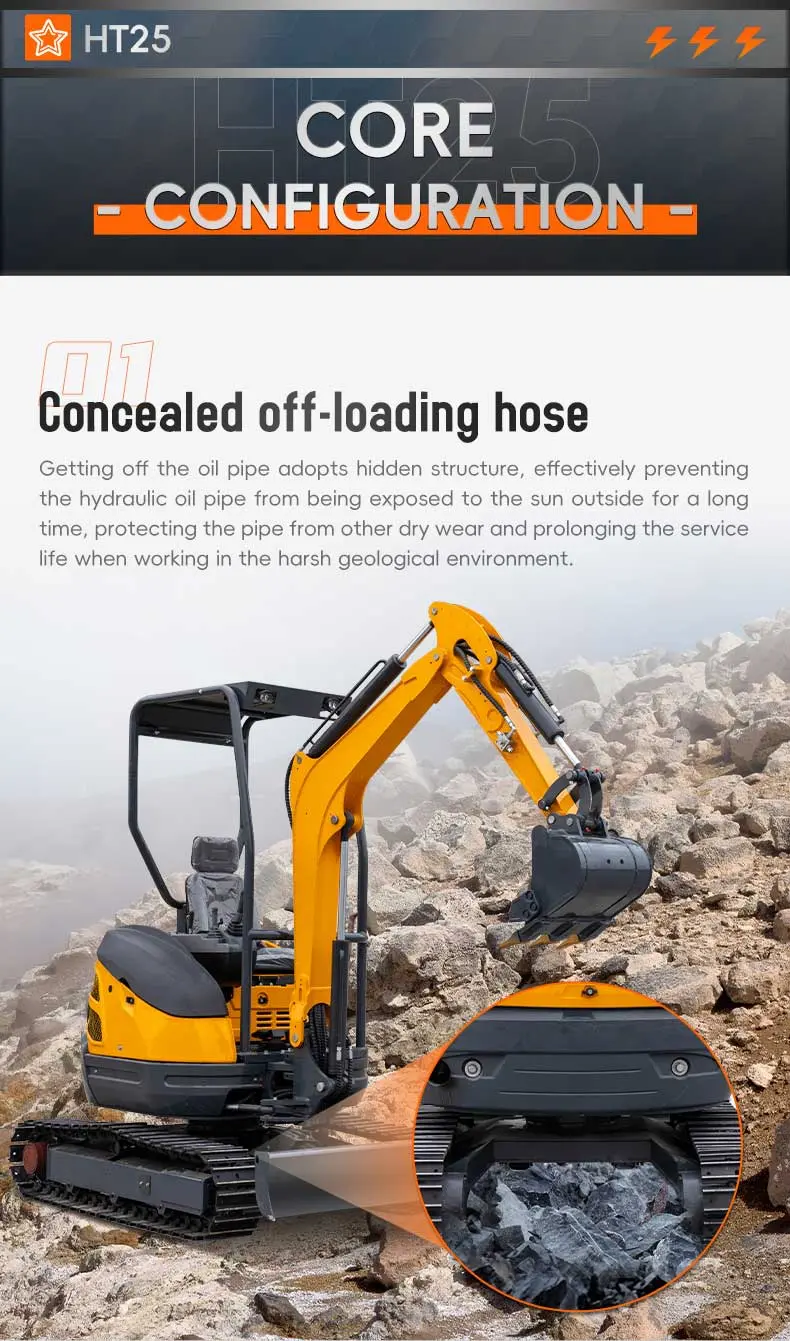

Get off the oil pipe using hidden structure, effectively prevent the hydraulic oil pipe long-term exposure to the sun outside, the customer in the harsh geological environment when working to protect the pipe and other interference with the wear and tear, to extend the service life.

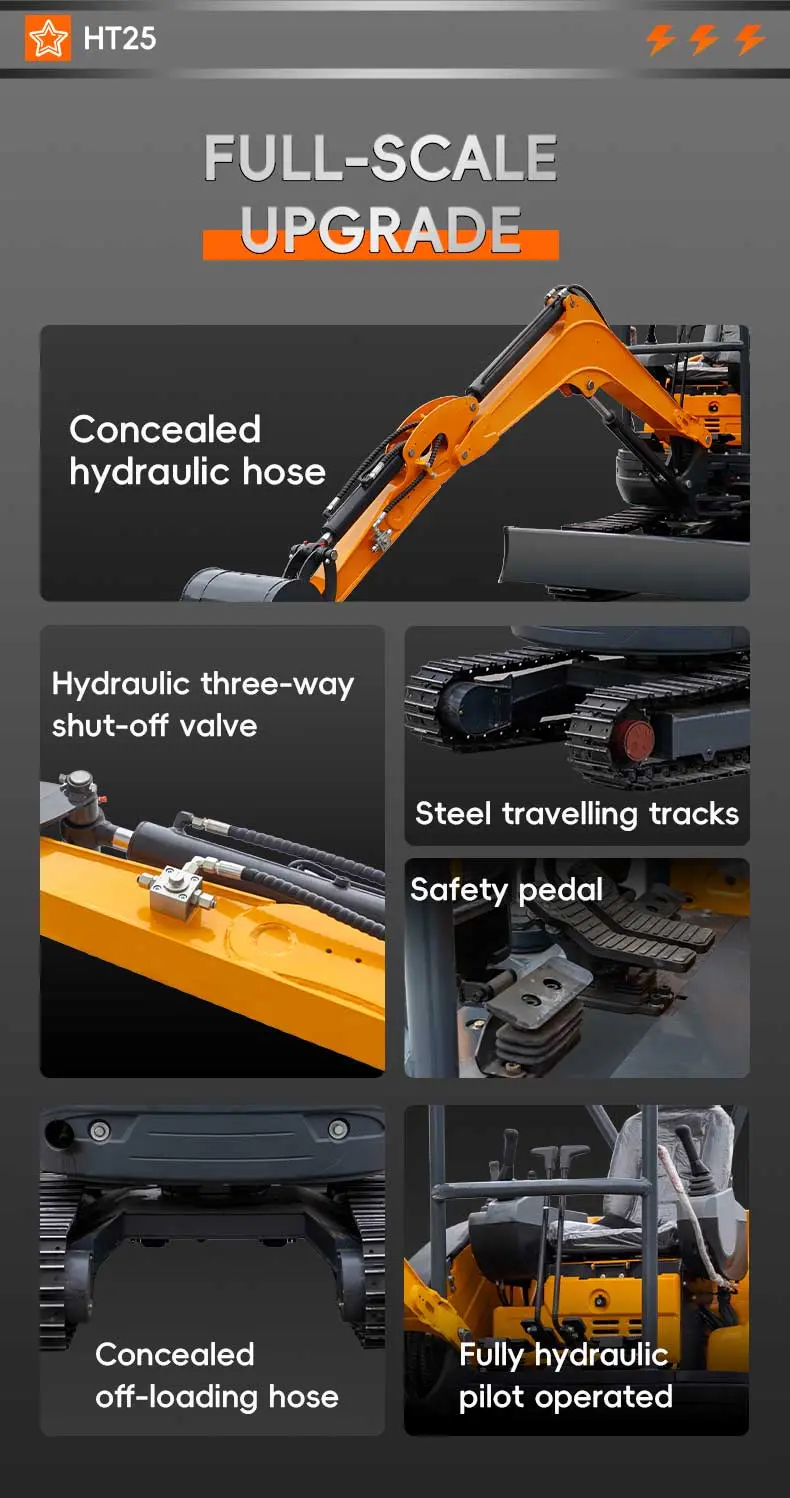

Product configuration:

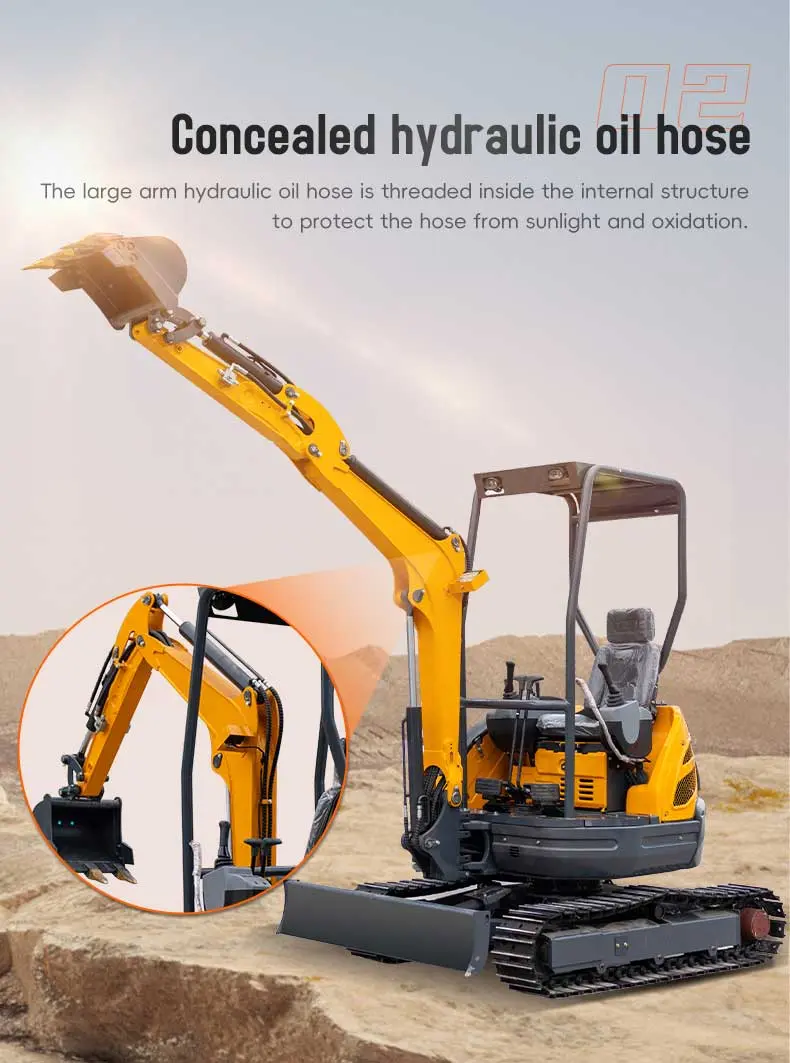

1.Big arm hydraulic oil pipe worn to the inside of the internal structure, than other models advantage in, can be protected from sunlight oxidation, in the fight crushing, not easy to collapse to the pipe, the hose to damage.

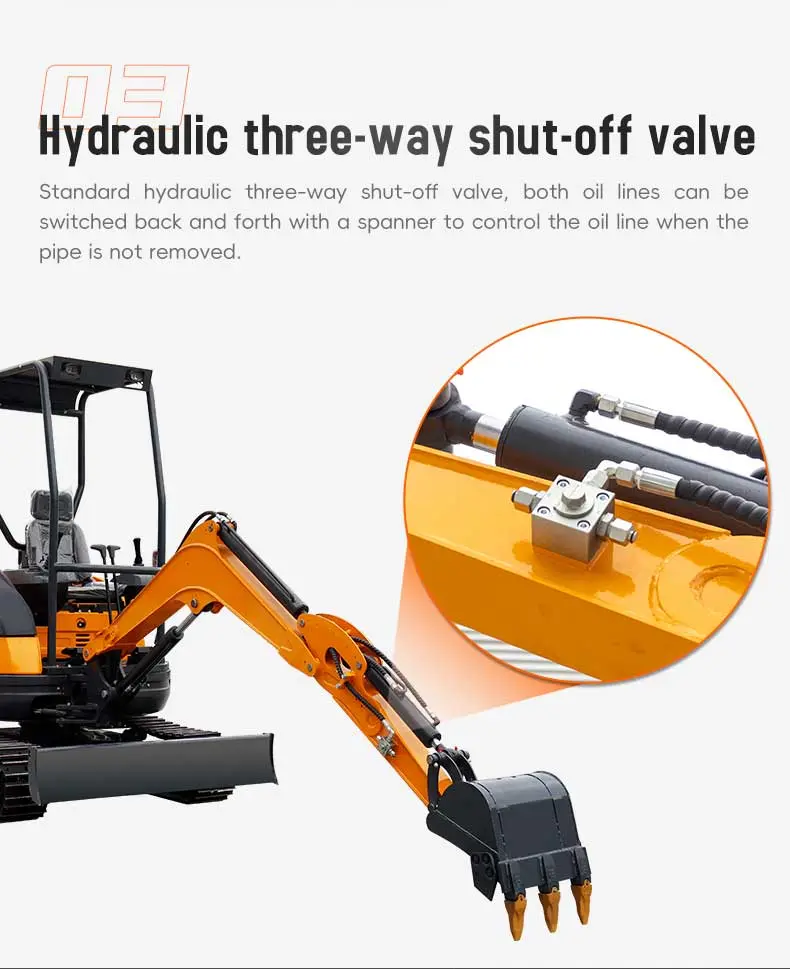

2. Standard hydraulic three-way shut-off valve, the role of three-way shut-off valve, two-way oil circuit at the same time in the non-dismantling of the pipe with a wrench to switch back and forth between the oil circuit control of the generics.

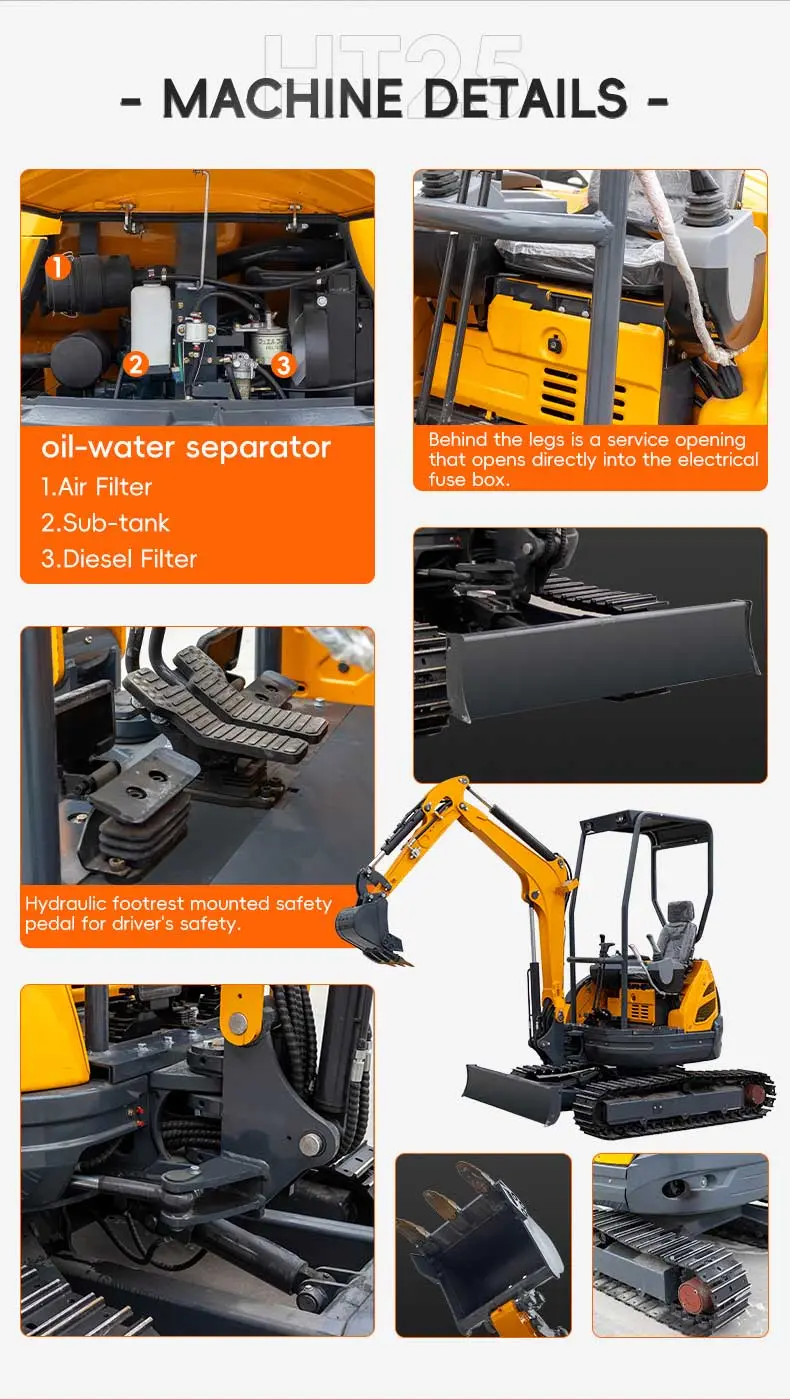

Maintenance:

1. Hydraulic foot pedal installed safety pedal to prevent the driver, in the process of driving mistakenly stepped on.

2. Behind the legs is the maintenance port that can be opened directly, with electrical fuse box.

3.Sub water tank

Role: radiator replenishment function, radiator if water shortage, will directly add this inside antifreeze, in time to ensure the safety of the engine.

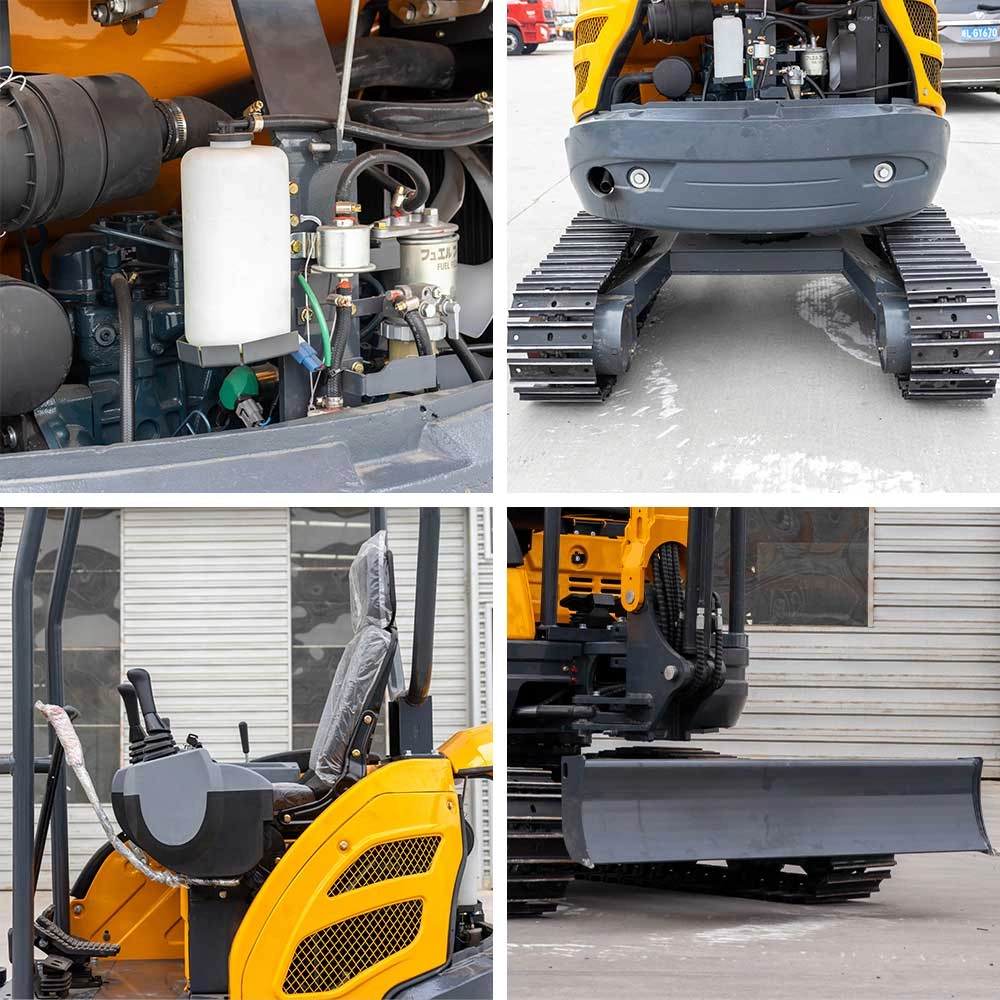

4. Oil-water separator

(1) oil-water separator is mainly based on the density difference between water and fuel, the use of gravity settling principle to remove impurities and water separator.

(2) The oil-water separator has other functions, such as pre-heating of fuel to prevent waxing, filtering impurities;

(3) It is a kind of fuel filter, the main role is to remove the water in the diesel fuel, in order to reduce injector failure, extend the service life of the engine;

(4) The oil-water separator can only separate oil and water from the fuel, separating the water in the oil, so that the engine to improve oil burning has a certain role.

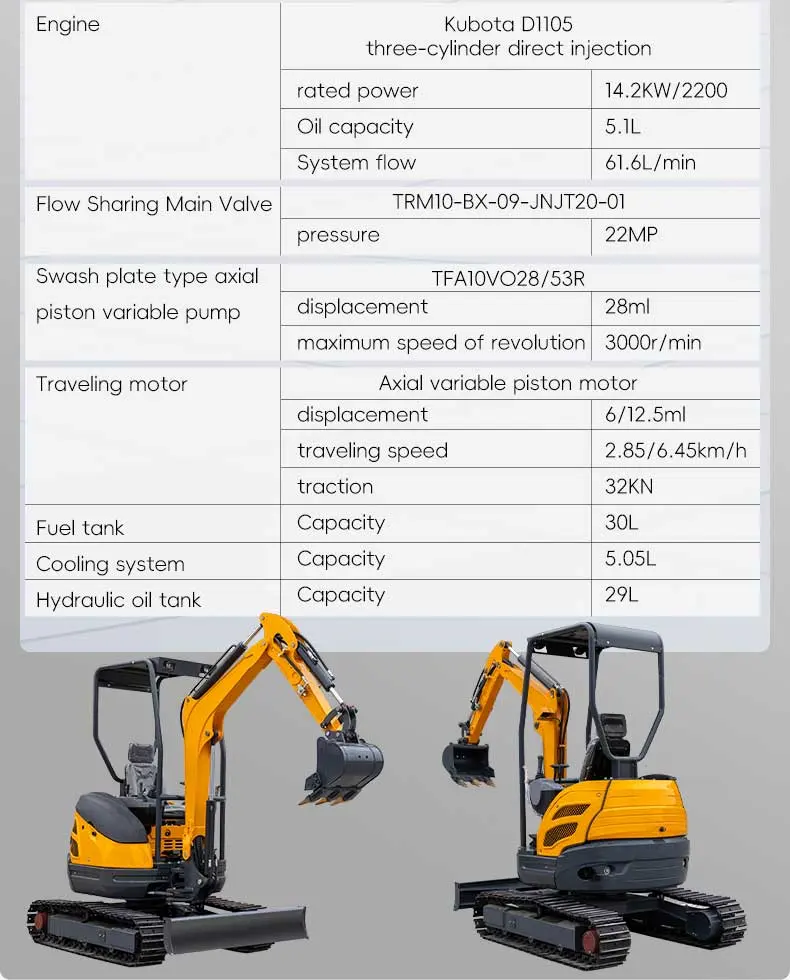

HT25 2.5T Mini Excavator Parmeter
